Honda Pilot: Turn Signal/Hazard Warning Lights Component Location Index

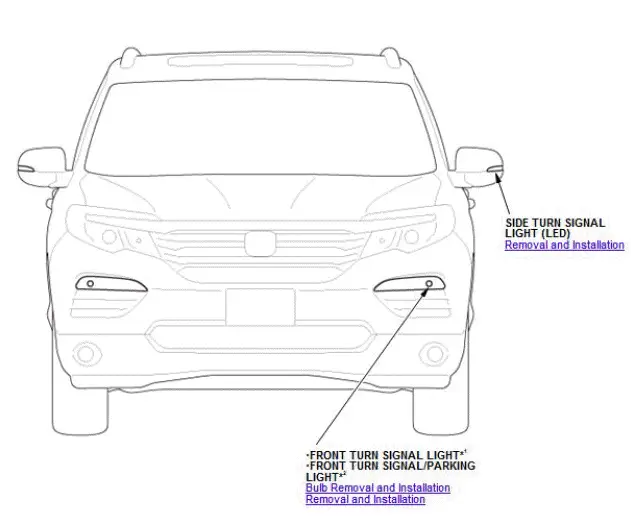

• SIDE TURN SIGNAL LIGHT (LED)
• FRONT TURN SIGNAL LIGHT*1
• FRONT TURN SIGNAL/PARKING LIGHT*2

*1: With LED daytime running light
*2: Without LED daytime running light

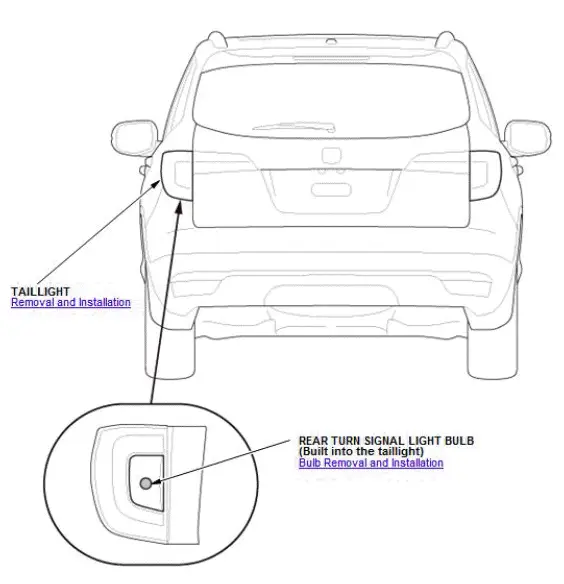

• TAILLIGHT
• REAR TURN SIGNAL LIGHT BULB

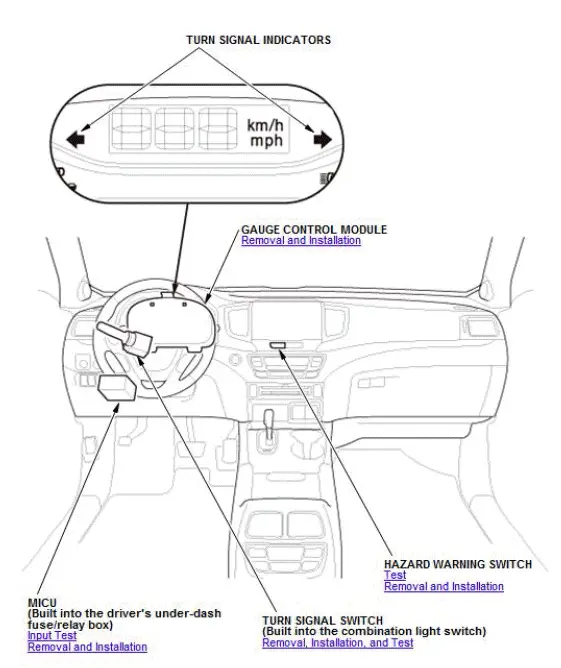

• TURN SIGNAL INDICATORS
• GAUGE CONTROL MODULE
• MICU (Built into the driver's under-dash fuse/relay box)
• TURN SIGNAL SWITCH
• HAZARD WARNING SWITCH
