Honda Pilot: Ventilated Seats Component Location Index

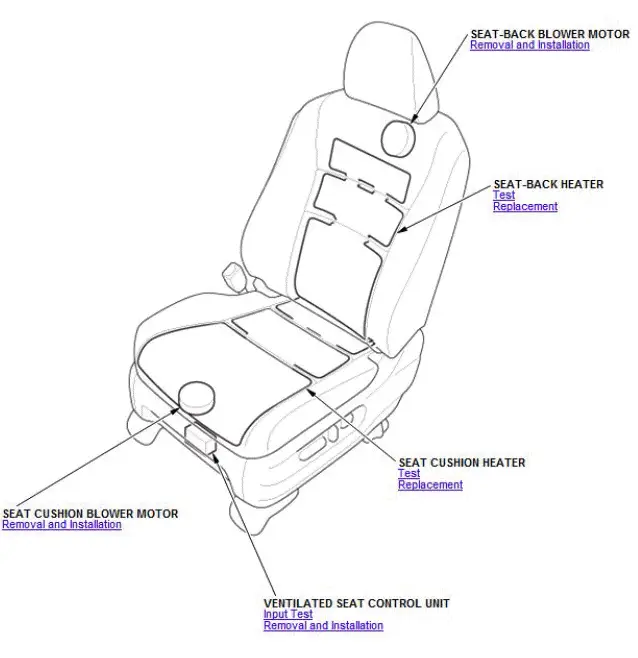

Driver's Seat

• SEAT-BACK BLOWER MOTOR
• SEAT-BACK HEATER
• SEAT CUSHION HEATER
• VENTILATED SEAT CONTROL UNIT
• SEAT CUSHION BLOWER MOTOR

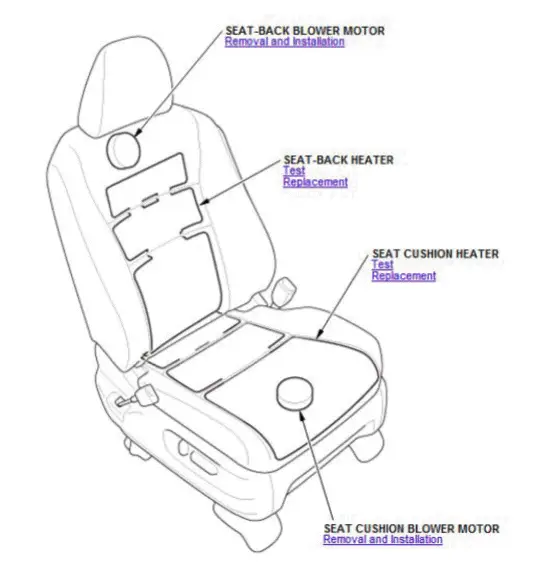

Front Passenger's Seat

• SEAT-BACK BLOWER MOTOR
• SEAT-BACK HEATER
• SEAT CUSHION HEATER
• SEAT CUSHION BLOWER MOTOR

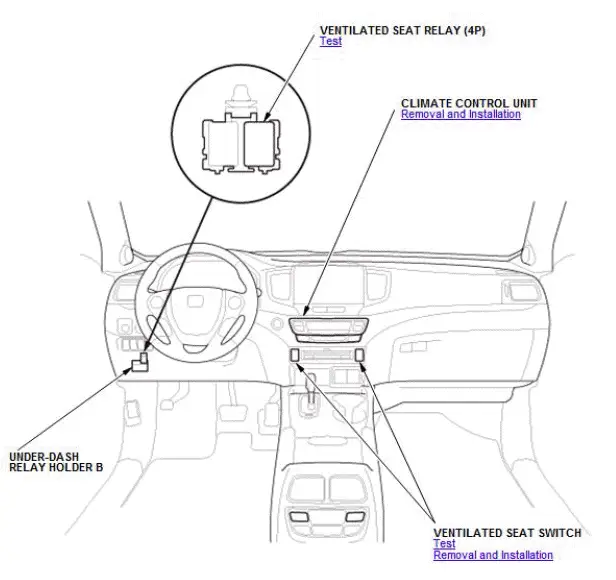

• VENTILATED SEAT RELAY (4P)
• CLIMATE CONTROL UNIT
• VENTILATED SEAT SWITCH
• UNDER-DASH RELAY HOLDER B

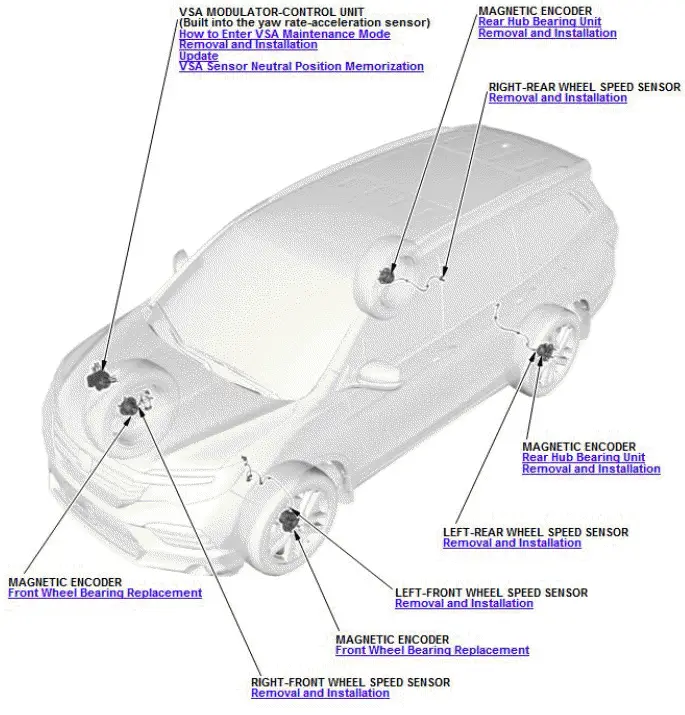

VSA System Component Location Index

• VSA MODULATOR-CONTROL UNIT (Built into the yaw rate-acceleration sensor)
• MAGNETIC ENCODER
• RIGHT-REAR WHEEL SPEED SENSOR
• MAGNETIC ENCODER
• LEFT-REAR WHEEL SPEED SENSOR
• LEFT-FRONT WHEEL SPEED SENSOR
• MAGNETIC ENCODER
• RIGHT-FRONT WHEEL SPEED SENSOR
• MAGNETIC ENCODER

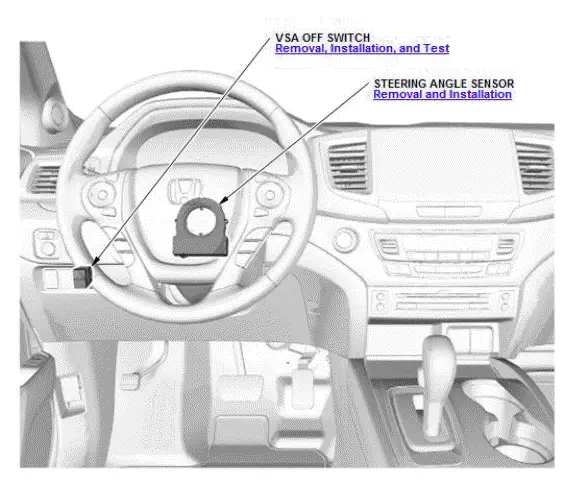

• VSA OFF SWITCH
• STEERING ANGLE SENSOR
