Honda Pilot: USB Adapter Connector for Inputs and Outputs
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Connector input and output Info / USB Adapter Connector for Inputs and Outputs
NOTE: The USB adapter, the USB adapter A, and the USB adapter B are the same parts.
USB ADAPTER 5P CONNECTOR
USB Charger Unit Connector for Inputs and Outputs
USB CHARGER UNIT 4P CONNECTOR
*1: With auto idle stop system
*2: Without auto idle stop system

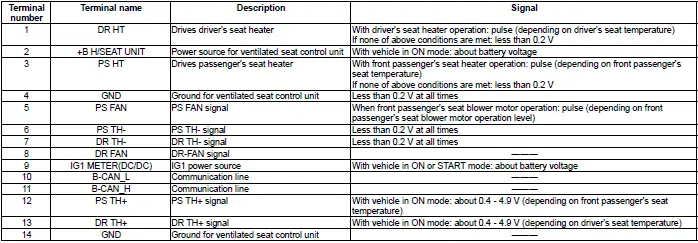

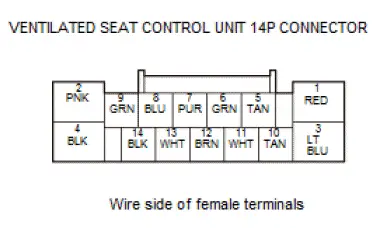

Ventilated Seat Control Unit Connector for Inputs and Outputs
VSA Modulator-Control Unit Connector for Inputs and Outputs

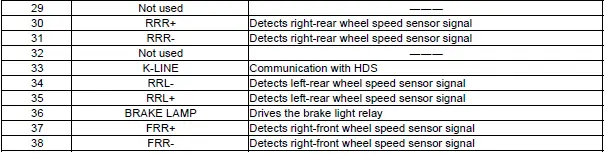

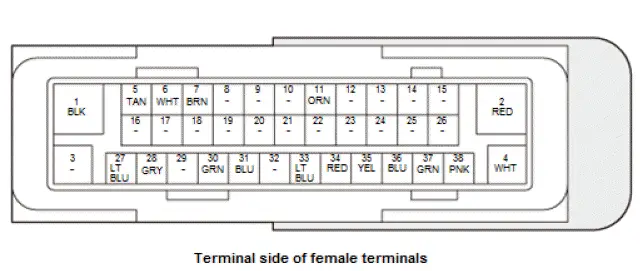

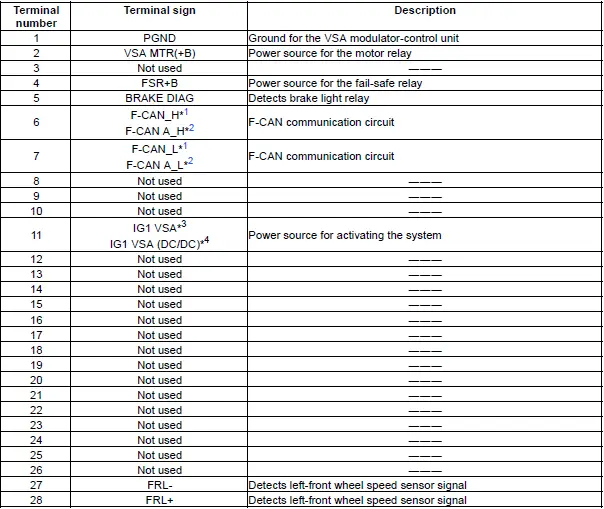

VSA Modulator-Control Unit Inputs and Outputs for 38P Connector (Connector Disconnected)
*1: 6-Speed A/T
*2: 9-Speed A/T
*3: Without Auto idle stop system
*4: With Auto idle stop system
