Honda Pilot: Valve Guide Replacement

Replacement

1. Valve Seal and Valve Spring Seat - Remove

2. Valve Guide - Remove

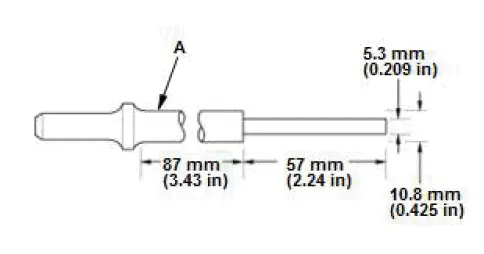

1. As illustrated, use a commercially available air-impact valve guide driver (A) modified to fit the diameter of the valve guides. In most cases, the same procedure can be done using the valve guide driver, 5.35 x 9.7 mm and a conventional hammer.
2. Select the proper replacement valve guides, and chill them in the freezer section of a refrigerator for at least an hour.

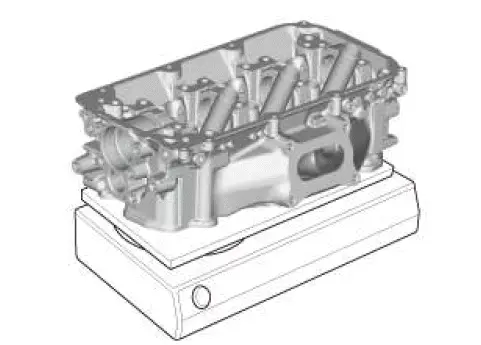

3. Use a hot plate or an oven to evenly heat the cylinder head to 300 ºF (150 ºC). Monitor the temperature with a cooking thermometer. Do not get the cylinder head hotter than 300 ºF (150 ºC); excessive heat may loosen the valve seats.

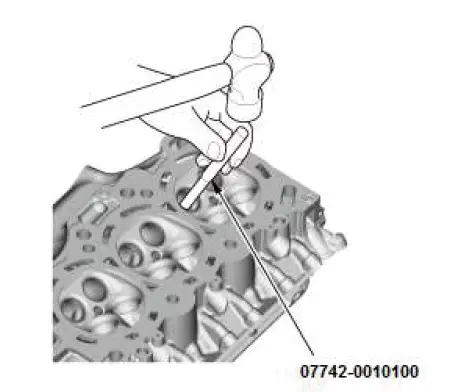

4. Working from the camshaft side, use the valve guide driver and an air hammer to drive the valve guide about 2 mm (0.08 in) towards the combustion chamber. This will knock off some of the carbon and make removal easier. Hold the air hammer directly in line with the valve guide to prevent damaging the driver. Wear safety goggles or a face shield.
5. Turn the cylinder head over, and drive the valve guide out toward the camshaft side of the cylinder head.
6. If a valve guide will not move, drill it out with an 8 mm (5/16) drill bit, then try again.

   NOTE: Drill guides only in extreme cases; you could damage the cylinder head if the valve guide breaks.

3. Valve Guide - Install

1. Take out a new valve guide(s) from the freezer, one at a time, as you need them.
2. Apply a thin coat of new engine oil to the outside of a new valve guide.

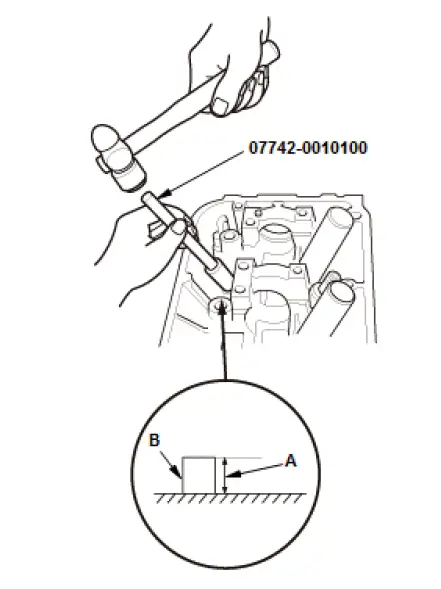

3. Install the valve guide from the camshaft side of the cylinder head; use the valve guide driver to drive the valve guide in to the specified installed height (A) of the valve guide (B). If you have all 24 valve guides to do, you may have to reheat the cylinder head.

Valve Guide Installed Height

  Intake: 21.2－22.2 mm (0.835－0.874 in)

  Exhaust: 20.6－21.6 mm (0.811－0.850 in)

4. Coat both the valve guide reamer, 5.5 mm and the valve guide with cutting oil.

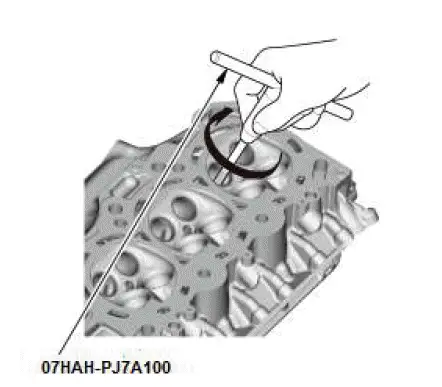

5. Rotate the valve guide reamer clockwise the full length of the valve guide bore.
6. Continue to rotate the valve guide reamer clockwise while removing it from the bore.

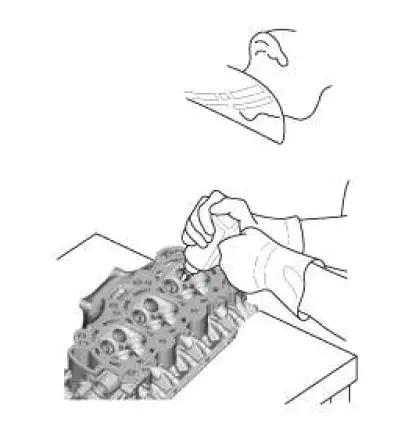

7. Thoroughly wash the valve guide in detergent and water to remove any cutting residue.

4. Valve Stem-to-Guide Clearance - Inspect

NOTE: Verify that a valve slides into the intake and exhaust valve guides without sticking.

5. Valve Seat - Inspect

NOTE: If necessary renew the valve seat using a valve seat cutter.

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Special Tool Required

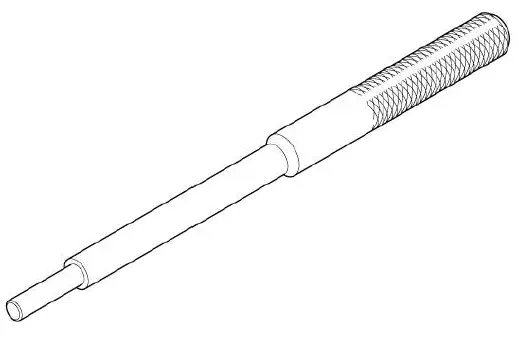

• Valve Guide Driver, 5.35 x 9.7 mm 07742-0010100

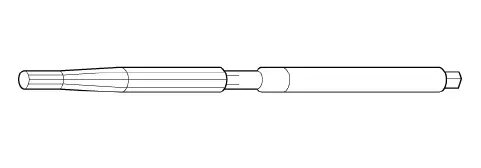

• Valve Guide Reamer, 5.5 mm 07HAH-PJ7A100
