Honda Pilot: USB Adapter Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / USB Adapter Removal and Installation
Removal/Installation
Dashboard Side
1. CD Player Unit Assembly (With CD Player Unit) - Remove
2. DVD Player Unit Assembly (With DVD Player Unit) - Remove
3. BD Player Unit Assembly (With BD Player Unit) - Remove

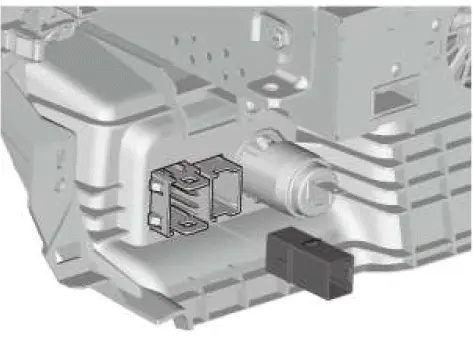

4. USB Adapter - Remove
5. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Center Console Side
1. Center Console - Remove

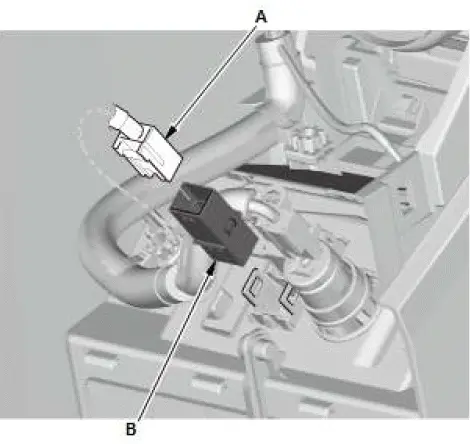

2. USB Adapter - Remove
- Disconnect the connector (A).
- Remove the USB adapter (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
USB Charger Unit Removal and Installation
Removal/Installation
1. Center Console Rear Trim - Remove

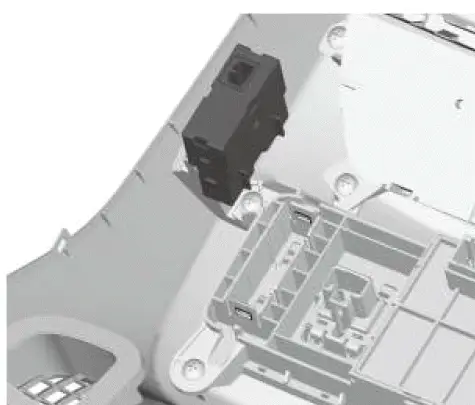

2. USB Charger Unit - Remove
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
