Honda Pilot: Valve Inspection

Inspection

1. Valve - Remove

2. Valve - Inspect

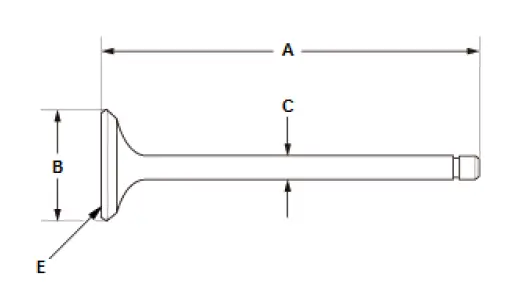

1. Measure the valve in these areas.

   NOTE: The letter (D or S) is stamped on the exhaust valve head (E).

Intake Valve Dimensions

  A Standard (New): 116.55－117.15 mm (4.5886－4.6122 in)

  B Standard (New): 35.9－36.1 mm (1.413－1.421 in)

  C Standard (New): 5.485－5.495 mm (0.21594－0.21634 in)

  C Service Limit: 5.485 mm (0.21594 in)

Exhaust Valve Dimensions

  A Standard (New): 113.90－114.50 mm (4.4842－4.5079 in)

  B Standard (New):

    D:29.85－30.15 mm (1.1752－1.1870 in)

    S:29.9－30.1 mm (1.177－1.185 in)

  C Standard (New): 5.450－5.460 mm (0.21457－0.21496 in)

  C Service Limit: 5.450 mm (0.21457 in)

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
