Honda Pilot: Washer Tube Removal and Installation

Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Front Side Washer

1. Hood Insulator - Remove

2. Right Front Inner Fender - Remove

3. A-Pillar Trim - Remove

4. Headliner - Remove (as needed)

5. Washer Tube - Remove

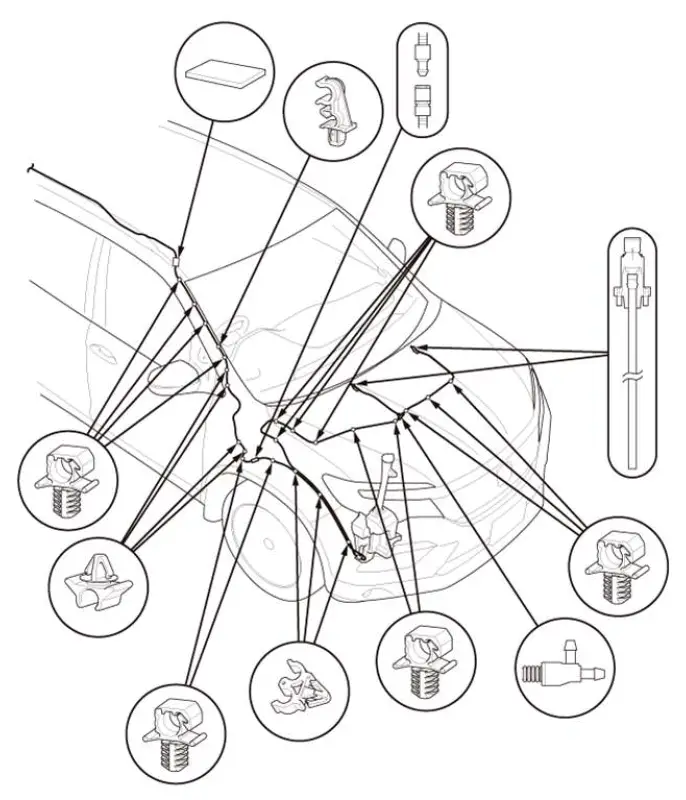

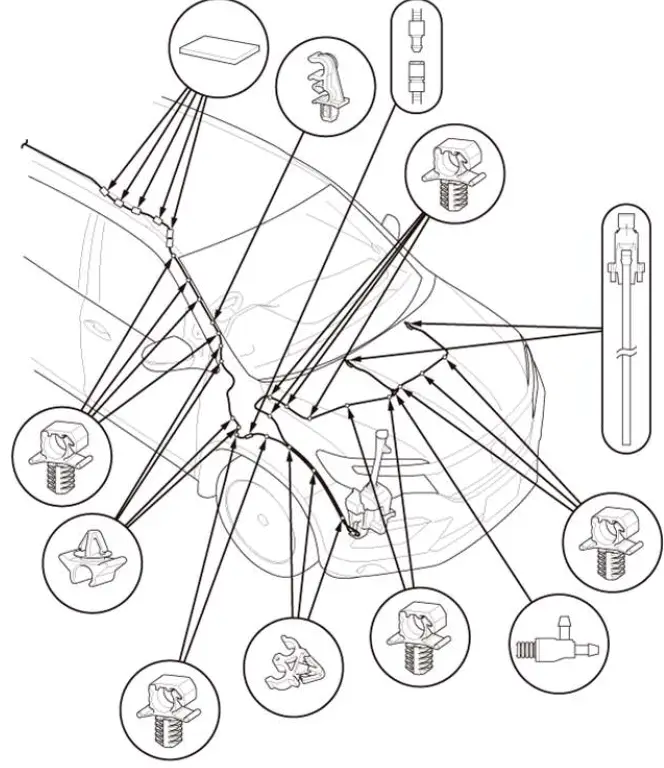

Normal roof

6. All Removed Parts- Install

1. Install the parts in the reverse order of removal.

   NOTE: Take care not to pinch the washer tubes. Check the washer operation.

Rear Side Washer

1. Headliner - Remove (as needed)

2. Tailgate Spoiler Trim - Remove

3. Washer Tube - Remove

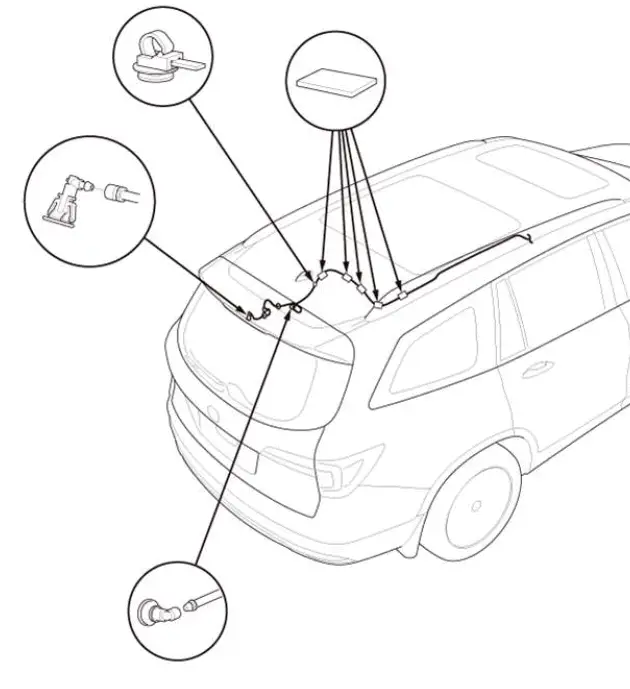

Normal roof or moonroof

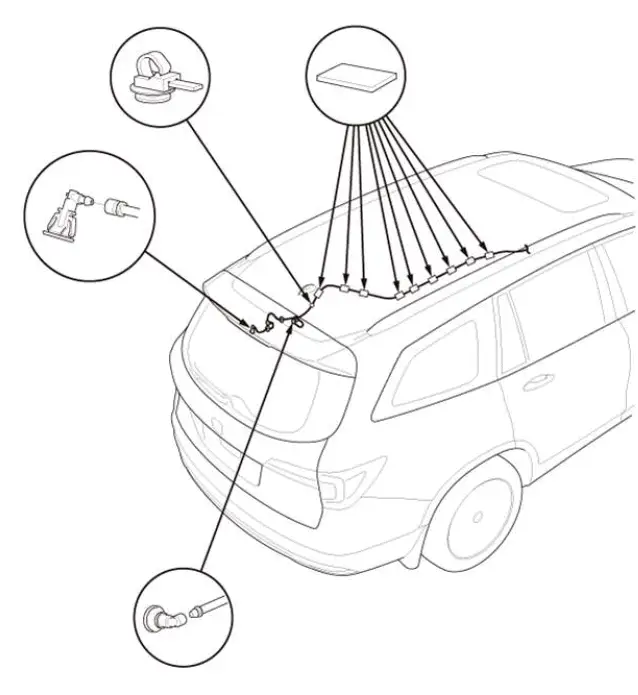

Panoramic glass roof

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

   NOTE: Take care not to pinch the washer tubes. Check the washer operation.
