Honda Pilot: Washer Reservoir Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Washer Reservoir Removal and Installation
Removal/Installation
1. Front Bumper - Remove
2. Windshield/Rear Window Washer Motor - Remove
3. Washer Fluid Level Switch - Remove
4. Washer Reservoir - Remove

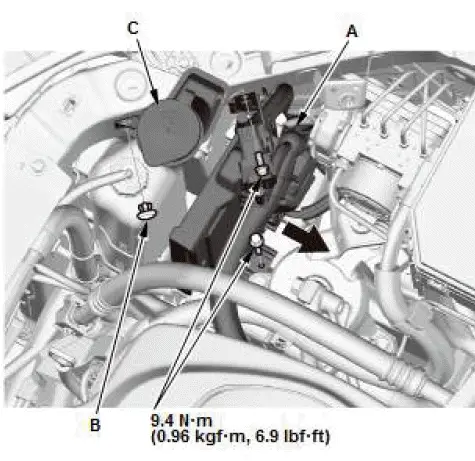

- Slide the PCM (A).
- Remove the clip (B) from the washer reservoir (C).

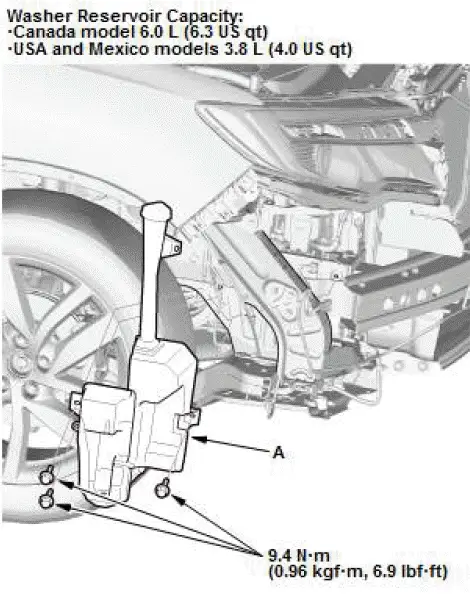

- Remove the washer reservoir (A).
5. All Removed Parts - Install
- Install the parts in the reverse order of removal.
