Honda Pilot: Wheel Removal and Installation

Removal/Installation

1. Vehicle - Lift

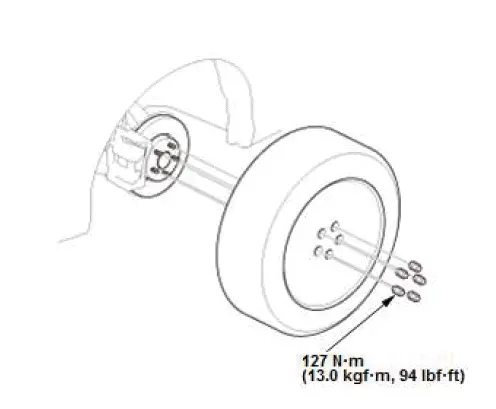

2. Wheel - Remove

3. All Removed Parts - Install

1. Install the wheel in the reverse order of removal.

   NOTE: Before installing the wheel, clean the mating surfaces between the brake disc and the inside of the wheel.

Wheel Speed Sensor Removal and Installation

Removal and Installation

NOTE: Unless otherwise indicated, illustrations used in the procedure are for AWD model.

Front

1. Vehicle - Lift

2. Front Wheel - Remove

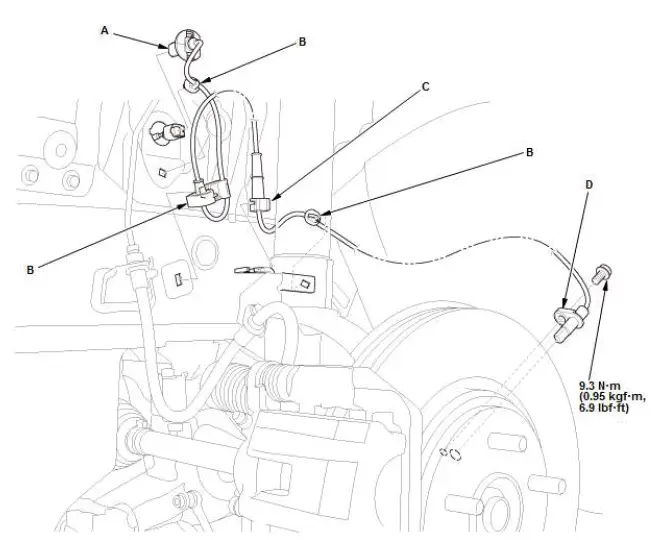

3. Front Wheel Speed Sensor - Remove

1. Disconnect the connector (A).
2. Remove the clips (B) and the wire guide rubber (C).
3. Remove the wheel speed sensor (D).

4. All Removed Parts - Install

1. Install the wheel speed sensor in the reverse order of removal, and note these items:

• Install the sensor carefully to avoid twisting the wires.
• If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.

Rear

1. Vehicle - Lift

2. Rear Wheels - Remove

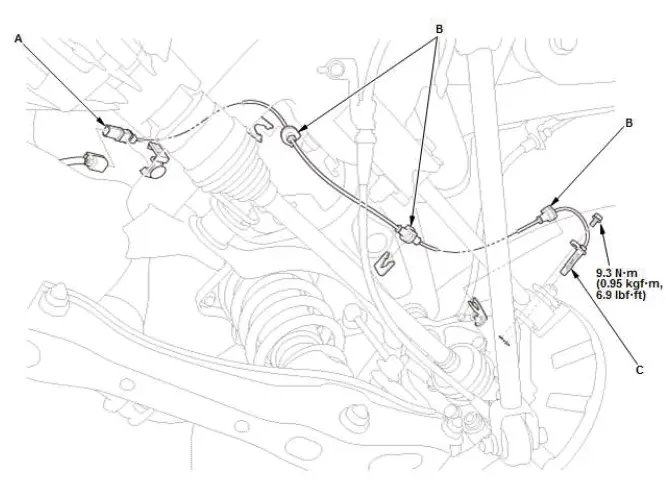

3. Rear Wheel Speed Sensor - Remove

1. Disconnect the connector (A).
2. Remove the wire guide rubber (B).
3. Remove the wheel speed sensor (C).

4. All Removed Parts - Install

1. Install the wheel speed sensor in the reverse order of removal, and note these items:

• Install the sensor carefully to avoid twisting the wires.
• If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
