Honda Pilot: Wiper/Washer Switch Removal, Installation, and Test

Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Column Cover - Remove

2. Wiper/Washer Switch - Remove

1. Disconnect the connector.
2. Remove the wiper/washer switch (A) by pushing the tabs.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Test

1. Wiper/Washer Switch - Test

1. Inspect the connector terminals to be sure they are all making good contact.
   • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
   • If the terminals are OK, go to step 2.

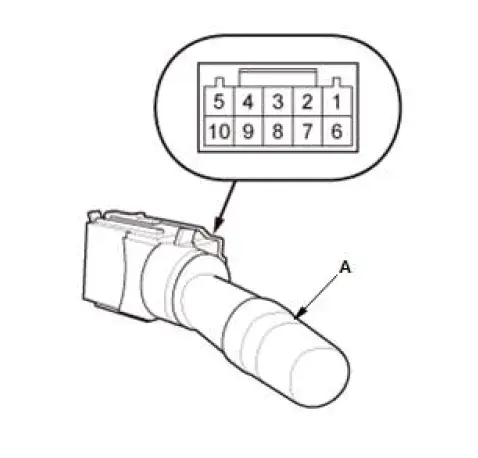

2. Check for continuity between the terminals in each switch position according to the table.
3. If the continuity is not as specified, replace the wiper/washer switch (A).

Windshield

Rear window

Wireless Headphone Battery Replacement

Replacement

1. Wireless Headphone Battery - Remove

1. Loosen the screw (A), then remove the battery cover (B) and the batteries (C).

2. Wireless Headphone Battery - Install

1. Install a new batteries in the reverse order of removal.

   NOTE:

   • Press the power button ( ) (A) to ON and confirm that the indicator (B) comes on after the battery is replaced.
   • Install the new batteries as a set. Do not mix old batteries with the new ones.

Wireless Remote Control Battery Replacement

Replacement

1. Wireless Remote Control Battery - Remove

1. Use a small coin to remove the cover and the batteries (A).

2. Wireless Remote Control Battery - Install

1. Install a new batteries, then close the battery cover.

   NOTE:

   • Install the new batteries as a set. Do not mix old batteries with the new ones.
   • Confirm that each operation works normally after replacing the batteries.
