Honda Pilot: Wiper Motor Removal and Installation

Removal

Windshield

1. Cowl Covers - Remove

2. Linkage Assembly - Remove

1. Disconnect the connector.

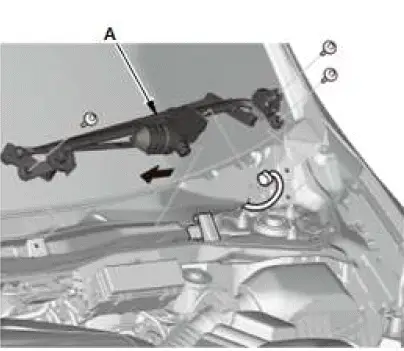

2. Remove the linkage assembly (A).

3. Windshield Wiper Motor - Remove

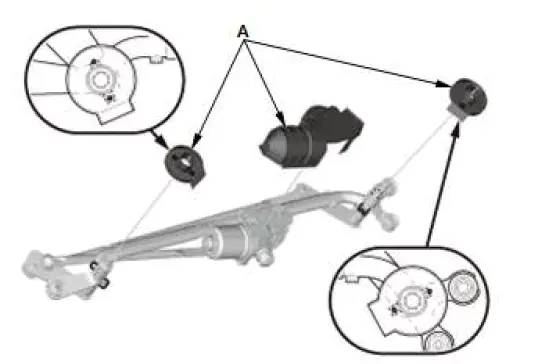

1. Remove the covers (A).

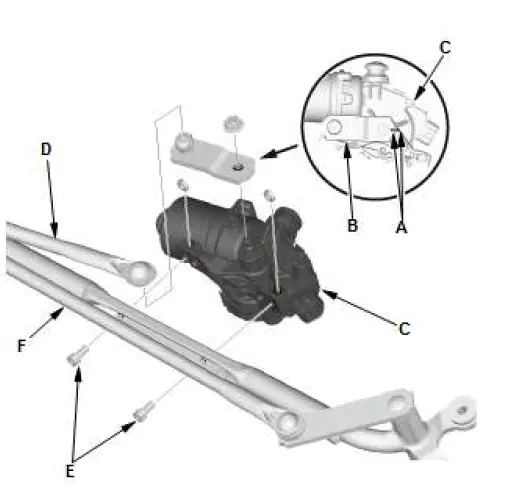

2. Note the alignment marks (A) on the link (B) and the windshield wiper motor (C), then remove the link.
3. Remove the connection rod (D) from the link.
4. Remove the TORX bolt (E) using a TORX T27 bit, then remove the windshield wiper motor from the linkage (F).

Rear Window

1. Rear Window Wiper Arm Assembly - Remove

2. Tailgate Lower Trim Panel - Remove

3. Rear Window Wiper Motor - Remove

1. Disconnect the connector.

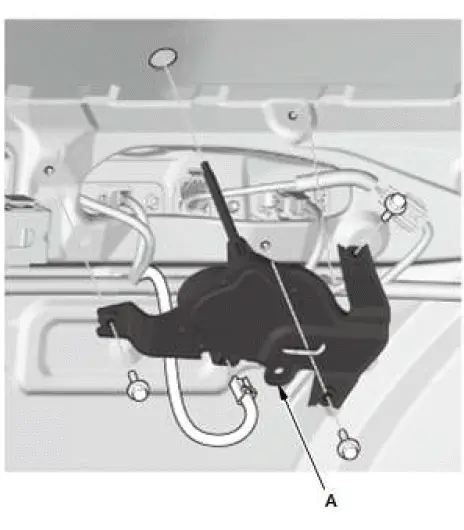

2. Remove the rear window wiper motor (A).

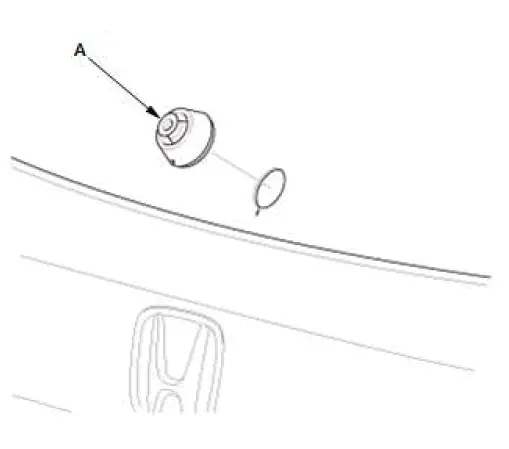

3. Remove the cap (A).

Installation

Windshield

1. Windshield Wiper Motor - Install

1. Before installing the wiper motor, connect the wiper motor connector, and turn the wiper/washer switch ON to (LO) or (HI) position, then OFF to return the wiper motor shaft to the park position.

   NOTE:

   • Do not use the wiper/washer switch (INT) position in this step.
   • Apply multipurpose grease to the moving parts.
   • Check the wiper motor operation.

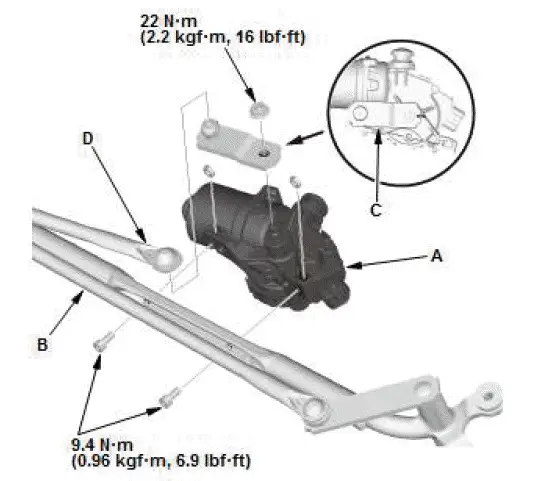

2. Install the wiper motor (A) to the linkage (B).
3. Install the link (C).
4. Install the connection rod (D) to the link.

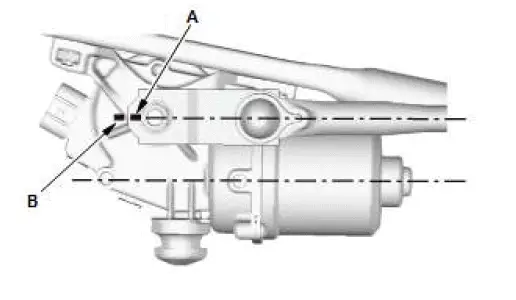

5. Install the linkage to the wiper motor shaft, then align the mark (A) of the linkage and the mark (B) of the wiper linkage assembly.

NOTE: Install the linkage level with the wiper motor.

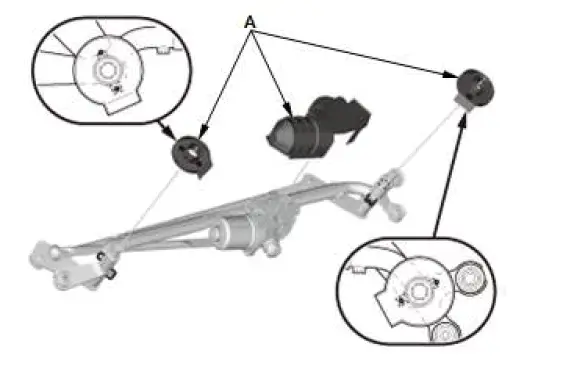

6. Install the covers (A).

2. Linkage Assembly - Install

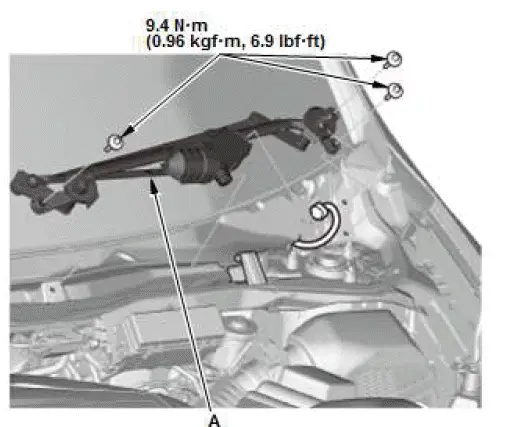

1. Install the linkage assembly (A).
2. Connect the connector.

3. Cowl Covers - Install

Rear Window

1. Rear Window Wiper Motor - Install

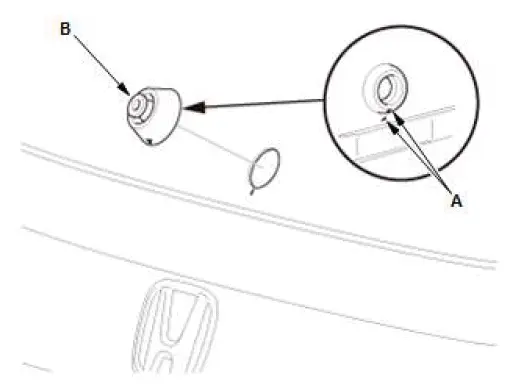

1. Align the position marks (A) when installing the cap (B).

2. Before reinstalling the wiper arm, connect the rear wiper motor connector, and turn the rear window wiper switch ON, then OFF to return the wiper shaft to the park position.

   NOTE:

   • Apply multipurpose grease to the moving parts.
   • Check the wiper motor operation.

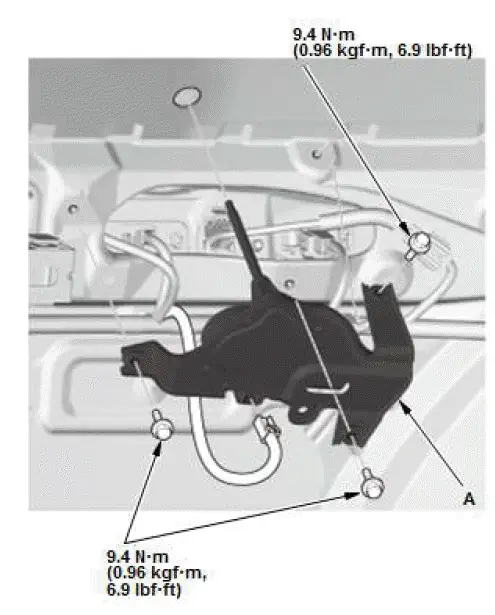

3. Install the rear window wiper motor (A).
4. Connect the connector.

2. Tailgate Lower Trim Panel - Install
