Honda Pilot: Wipers/Washers Component Location Index

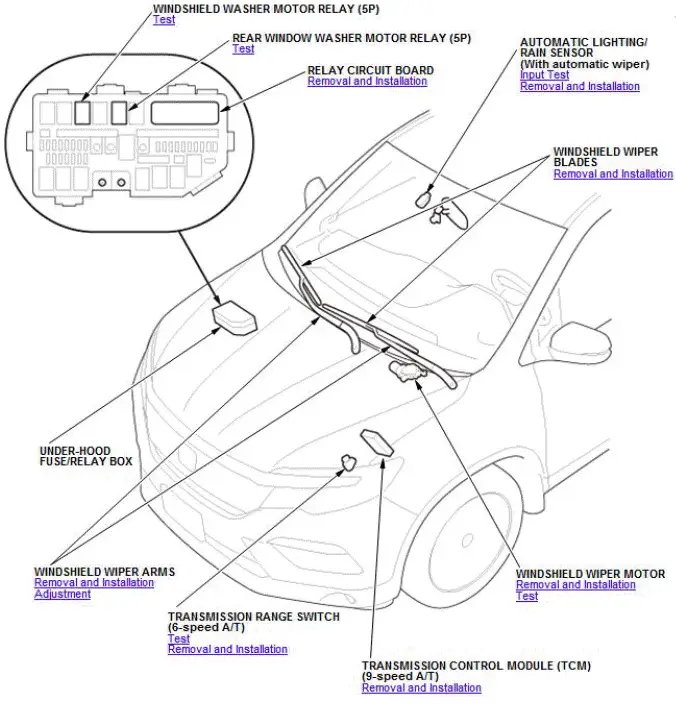

• WINDSHIELD WASHER FJ1OTOR RELAY (5P)
• REAR WINDOW WASH ER MOTOR RELAY (5P)
• RELAY CIRCUIT BOARD
• AUTOMATIC LIGHTING/RAIN SENSOR (With automatic wiper)
• WINDSHIELD WIPER BLADES
• WINDSHIELD WIPER MOTOR
• TRANSMISSION CONTROL MODULE (TCM) (9-speed A/T)
• TRANSMISSION RANGE SWITCH (6-speed A/T)
• WINDSHIELD WIPER ARMS
• UNDER-HOOD FUSE/RELAY BOX

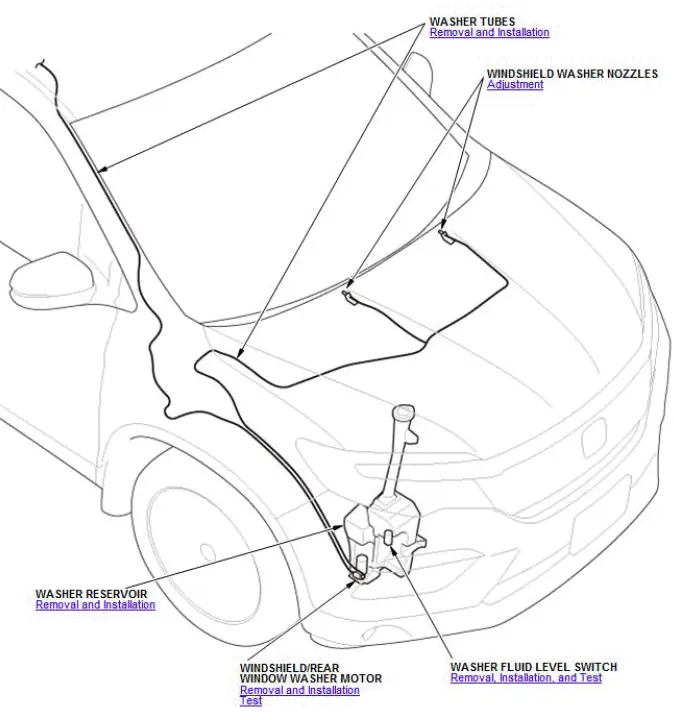

• WASHER TUBES
• WINDSHIELD WASHER NOZZLES
• WASHER FLUID LEVEL SWITCH
• WINDSHIELD/REAR WINDOW WASHER MOTOR
• WASHER RESERVOIR

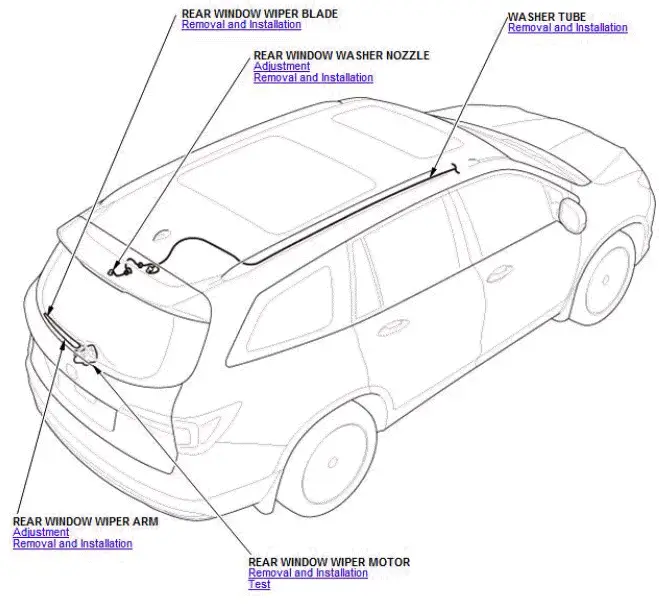

• REAR WINDOW WIPER BLADE
• REAR WINDOW WASHER NOZZLE
• WASHER TUBE
• REAR WINDOW WIPER MOTOR
• REAR WINDOW WIPER ARM

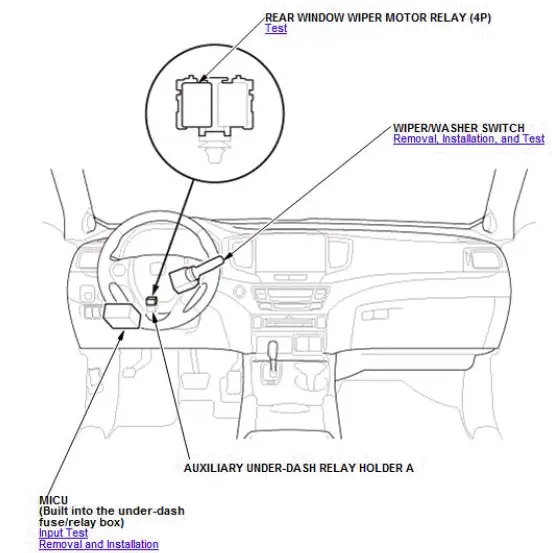

• REAR WINDOW WIPER MOTOR RELAY (4P)
• WIPER/WASHER SWITCH
• AUXILIARY UNDER-DASH RELAY HOLDER A
• MICU (Built into the under-dash fuse/relay box)
