Honda Pilot: 12 Volt Battery Removal and Installation

NOTE:

• When replacing the 12 volt battery used for the idle stop. Using a standard 12 volt battery will s
• When replacing the 12 volt battery used for the procedure of the PCM.

1. Front Bulkhead Cover - Remove

2. Air Intake Tube - Remove

3. 12 Volt Battery Terminal - Disconnect

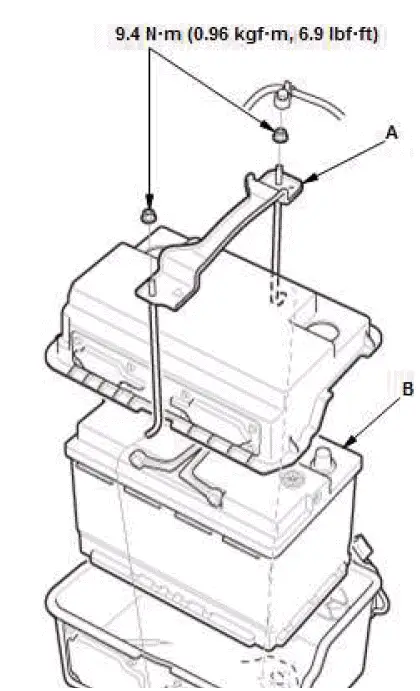

4. 12 Volt Battery - Remove

12 Volt Battery Duct Removal and Installation

Removal/Installation

1. 12 Volt Battery Box - Remove

2. Front Bumper - Remove

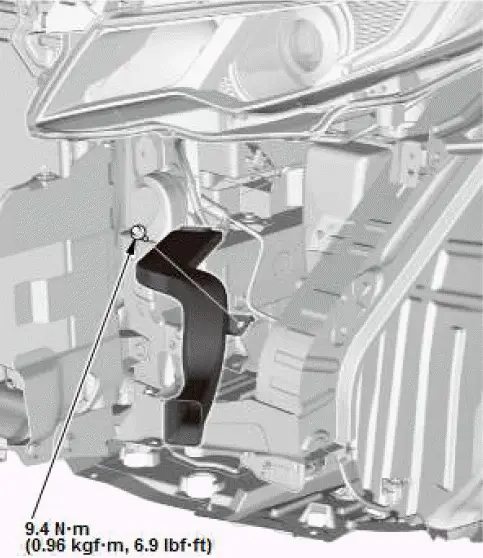

3. 12 Volt Battery Duct - Remove

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

12 Volt Battery Sensor Removal and Installation

1. Air Intake Tube - Remove

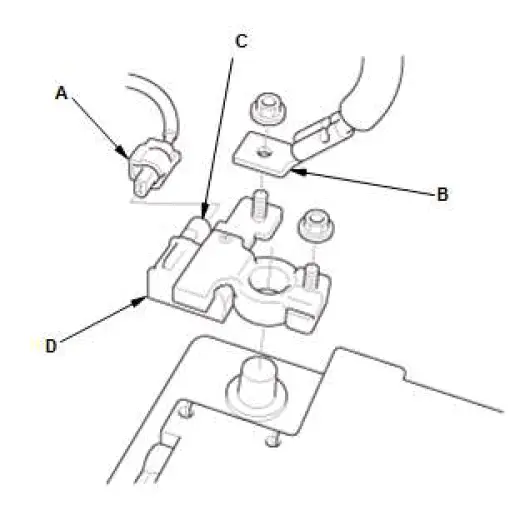

2. 12 Volt Battery Sensor - Remove
