Honda Pilot: BSI Alert Indicator Removal and Installation

Removal/Installation

1. Front Door Panel - Remove

2. Mirror Mount Cover - Remove

3. BSI Alert Indicator - Remove

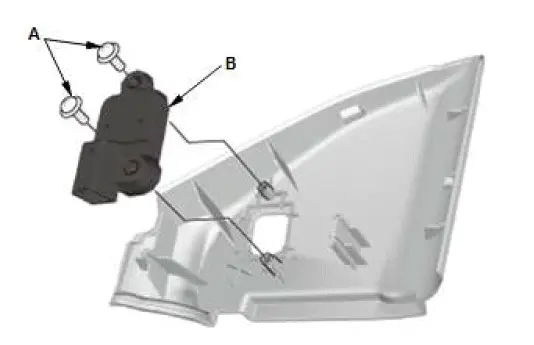

1. Remove the screws (A), then remove the BSI alert indicator (B).

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

BSI Radar Unit Mounting Area Check

Adjustment

1. BSI Radar Unit - Remove

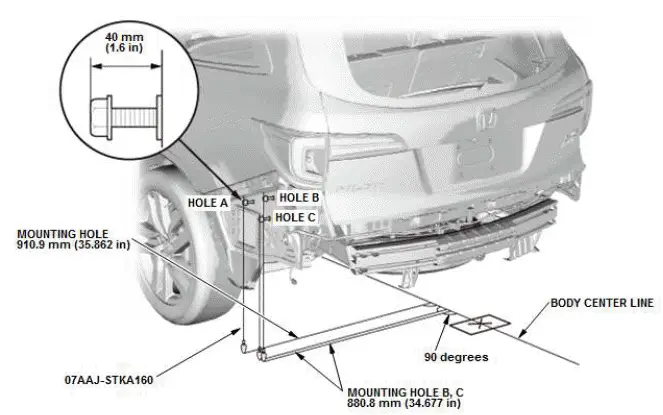

2. Upper Body Measuring Dimensions - BSI Radar Unit Mounting Positions

1. Install bolts on each hole of the body panel.
2. Measure the length from the tip of the bolt installed to each hole A, B, and C to the body center line.

NOTE: If measured lengths between a body center line and hole A to C are different from the standard, take the vehicle to a body repair shop to have the panel adjusted to standard.

3. BSI Radar Unit - Install

4. Rear Bumper - Install

Special Tool Required

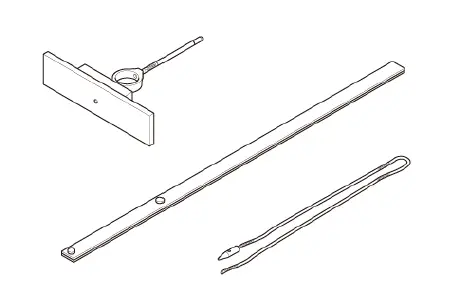

• Target Set 07AAJ-STKA160
