Honda Pilot: BSI Radar Unit Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / BSI Radar Unit Removal and Installation
Removal/Installation
1. Rear Bumper - Remove
2. BSI Radar Unit - Remove

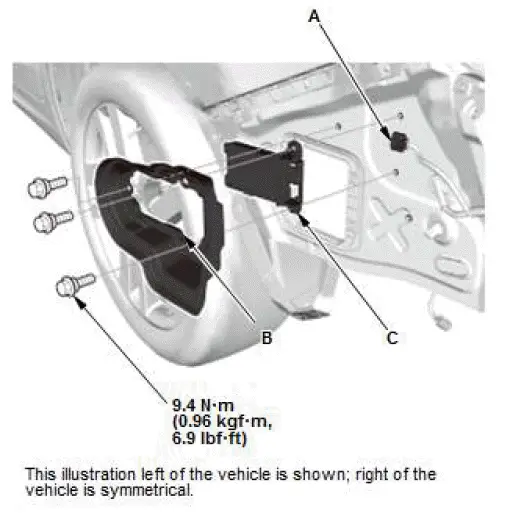

- Disconnect the BSI radar unit connector (A).
- Remove the cover (B) and the BSI radar unit (C).

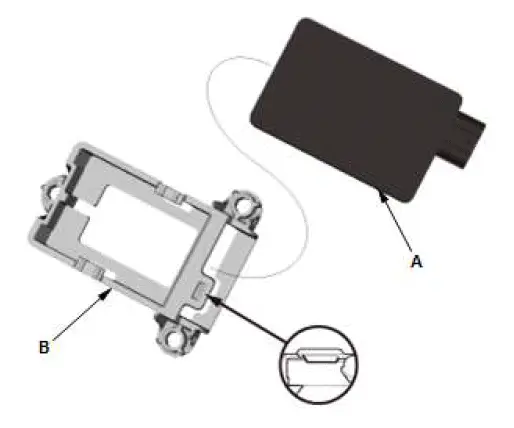

- If necessary, remove the BSI radar unit (A) from the bracket (B).
3. All Removed Parts - Install
