Honda Pilot: Dashboard Center Lower Panel Removal and Installation

Removal/Installation

1. Both Dashboard Side Lid - Remove

2. Driver's Dashboard Lower Cover - Remove

3. Passenger's Dashboard Trim Panel - Remove

4. Dashboard Center Panel - Remove

5. Dashboard Center Middle Trim - Remove

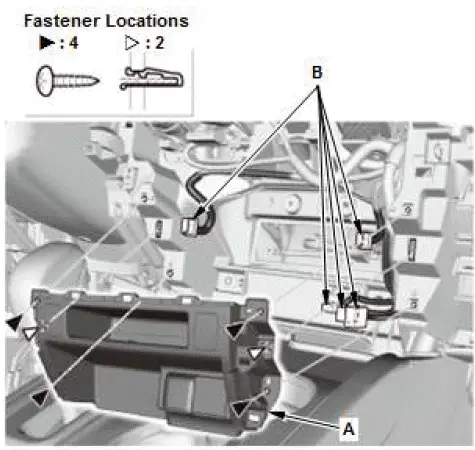

6. Dashboard Center Lower Panel - Remove

1. Remove the screws.
2. Remove the dashboard center lower panel (A), and then disconnect the connectors (B). (for some models)

7. USB Adapter - Remove (For Some Models)

8. Front Accessory Power Socket - Remove

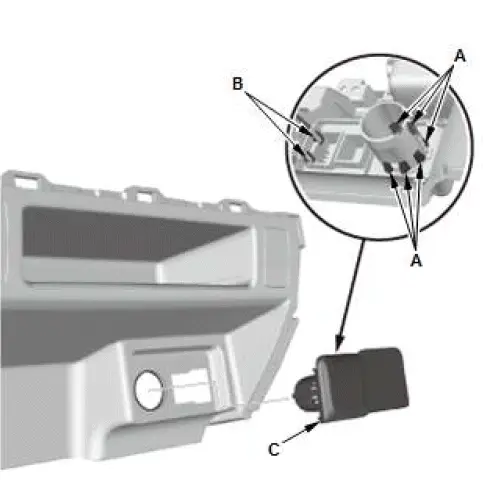

9. Accessory Socket Panel - Remove

1. If necessary, gently press the tabs (A) and release the hooks (B), and then remove the accessory socket panel (C).

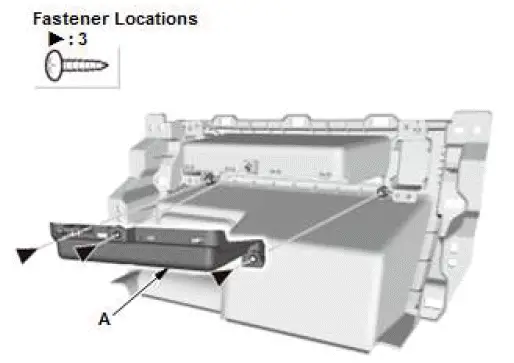

10.Dashboard Center Lower Panel Pocket - Remove

1. If necessary, remove the dashboard center lower panel pocket (A).

11.All Removed Parts - Install

1. Install the parts in the reverse order of removal.
