Honda Pilot: Dashboard Center Middle Trim Removal and Installation

Removal/Installation

1. Both Dashboard Side Lid - Remove

2. Driver's Dashboard Lower Cover - Remove

3. Passenger's Dashboard Trim Panel - Remove

4. Dashboard Center Panel - Remove

5. Dashboard Center Middle Trim - Remove

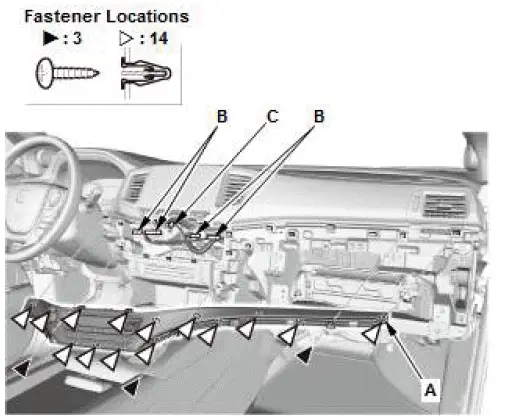

1. Remove the screws.
2. Remove the dashboard center middle trim (A).
3. Disconnect the connectors (B). (for some models)
4. Remove the harness clip (C).

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Dashboard Center Panel Removal and Installation

Removal/Installation

1. Dashboard Center Panel - Remove

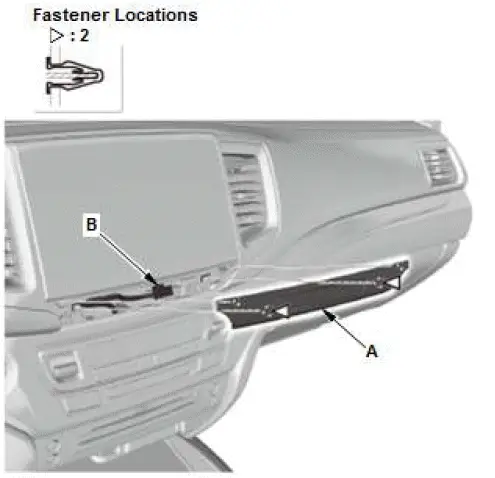

1. Remove the dashboard center panel (A), and then disconnect the connector (B).

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
