Honda Pilot: Dashboard Center Speaker Trim Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Dashboard Center Speaker Trim Removal and Installation
Removal and Installation

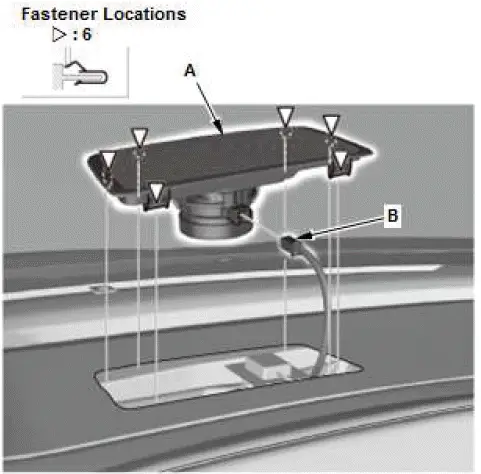

1. Dashboard Center Speaker Trim - Remove
- Remove the center speaker trim (A), and then disconnect the connector (B).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Dashboard Knee Pad Removal and Installation
Removal and Installation

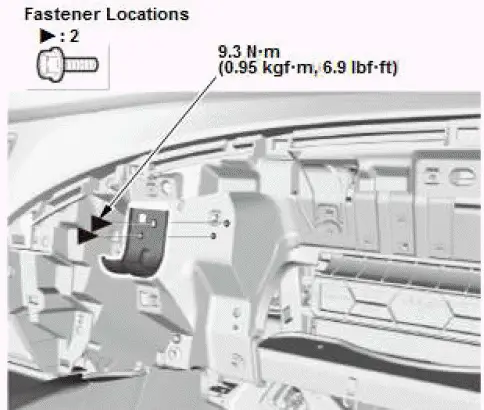

Driver's Knee Pad
1. Dashboard Side Lid - Remove (Driver's Side)
2. Driver's Dashboard Lower Cover - Remove
3. Steering Column Cover - Remove
4. Driver's Knee Pad - Remove
5. All Removed Parts - Install
- Install the parts in the reverse order of removal.

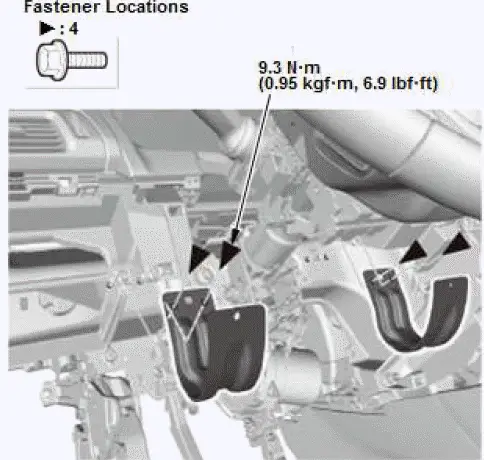

Passenger's Knee Pad
1. Dashboard Side Lid - Remove (Passenger's Side)
2. Passenger's Dashboard Undercover - Remove
3. Passenger's Dashboard Trim Panel - Remove
4. Glove Box - Remove
5. Passenger's Knee Pad - Remove
6. All Removed Parts - Install
- Install the parts in the reverse order of removal.
