Honda Pilot: Dashlights Brightness Control Switch Removal and Installation

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Dashlights Brightness Control Switch Removal and Installation

Removal/Installation

1. Meter Visor - Remove

2. Dashlights Brightness Control Switch - Remove

Honda Pilot. Remove, Install, Replace, Check info

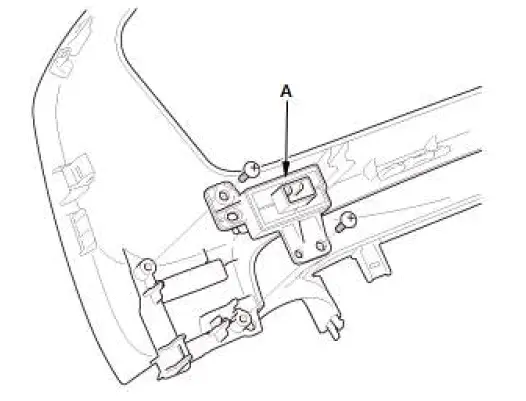

  1. Remove the dashlights brightness control switch (A).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

DC-DC Converter Removal and Installation

Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Driver's Heater Duct B - Remove

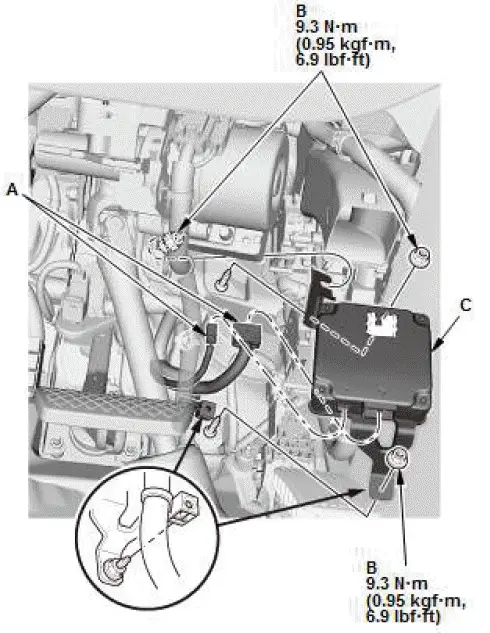

2. DC-DC Converter - Remove

Honda Pilot. Remove, Install, Replace, Check info

  1. Disconnect the connectors (A).
  2. Loosen or remove the DC-DC converter mounting nuts (B).
  3. Remove the DC-DC converter (C).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Defogger Vent Trim Removal and Installation

Removal and Installation

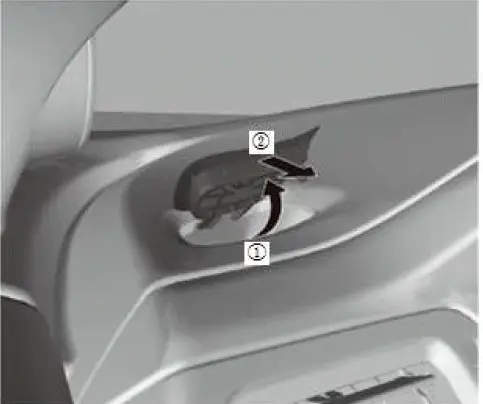

1. Defogger Vent Trim - Remove

Honda Pilot. Remove, Install, Replace, Check info

NOTE: The driver's side is shown; the passenger's side is similar.

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
