Honda Pilot: Door Courtesy Light Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Door Courtesy Light Removal and Installation
Removal and Installation

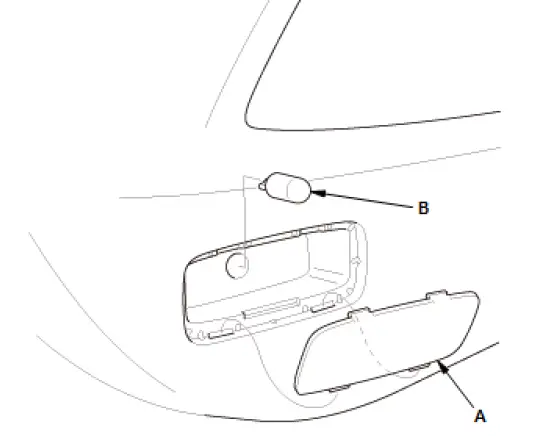

1. Door Courtesy Light - Remove
Door Courtesy Light: 2 CP
- Carefully pry off the lens (A).
- Remove the bulb (B).
2. All Parts Removed - Install
- Install the parts in the reverse order of removal.
Door Inner Handle Light Removal and Installation
Removal/Installation
Front Door Side
1. Front Door Panel - Remove

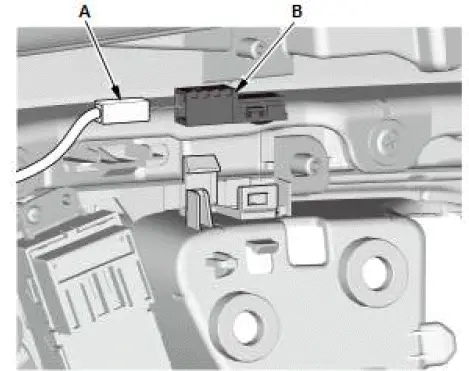

2. Front Door Inner Handle Light - Remove
Front Door Inner Handle Light: LED
- Disconnect the connector (A).
- Remove the front door inner handle light (B).
3. All Parts Removed - Install
- Install the parts in the reverse order of removal.
Rear Door Side
1. Rear Door Panel - Remove

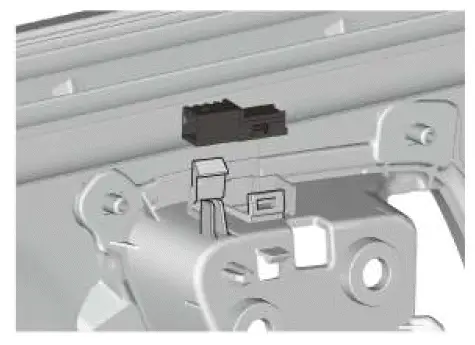

2. Rear Door Inner Handle Light - Remove
Rear Door Inner Handle Light: LED
3. All Parts Removed - Install
- Install the parts in the reverse order of removal.
