Honda Pilot: Door Pocket Light Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Door Pocket Light Removal and Installation
Removal/Installation
Front Door Side
1. Front Door Panel - Remove
2. Front Door Pocket Light - Remove

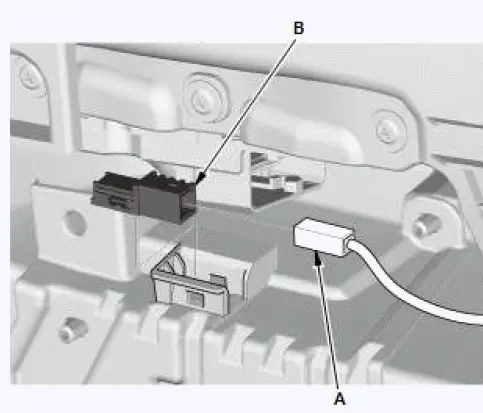

Front Door Pocket Light: LED
- Disconnect the connector (A).
- Remove the front door pocket light (B).
3. All Parts Removed - Install
- Install the parts in the reverse order of removal.
Rear Door Side
1. Rear Door Panel - Remove
2. Rear Door Pocket Light - Remove
Rear Door Pocket Light: LED
3. All Parts Removed - Install
- Install the parts in the reverse order of removal.
