Honda Pilot: Drive Belt Auto-Tensioner Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Drive Belt Auto-Tensioner Removal and Installation
Removal and Installation
1. Drive Belt - Remove

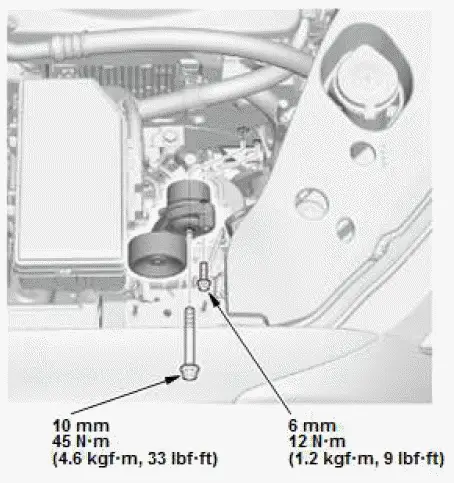

2. Drive Belt Auto-Tensioner - Remove
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Drive Belt Removal and Installation
Removal/Installation
1. Drive Belt - Remove

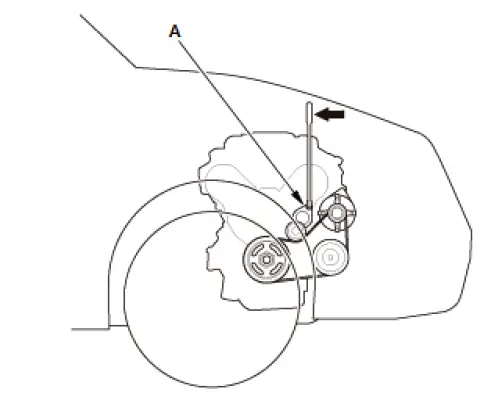

- Set a wrench on the drive belt auto-tensioner (A), and slowly turn the wrench in the direction of the arrow.
- Remove the drive belt.
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
