Honda Pilot: DVD Player Unit Removal and Installation

Removal/Installation

1. Dashboard Center Middle Trim - Remove

2. DVD Player Unit Assembly - Remove

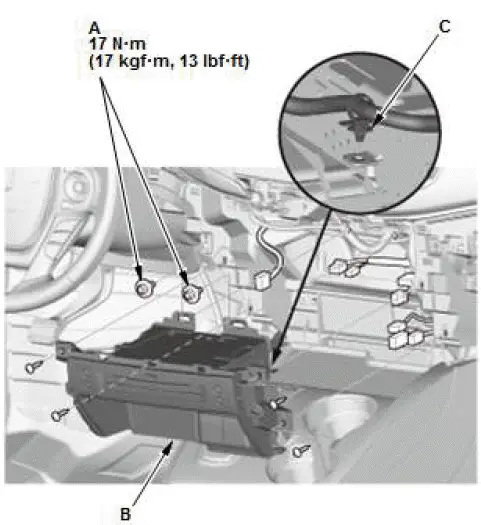

1. Using a TORX E8 bit, remove the TORX bolts (A).
2. Pull out the DVD player unit (B), then remove the harness clip (C).
3. Disconnect the connectors, then remove the DVD player unit.

3. USB Adapter - Remove

4. Seat Heater Switch - Remove

5. Front Accessory Power Socket - Remove

6. Accessory Socket Panel - Remove

7. DVD Player Unit - Remove

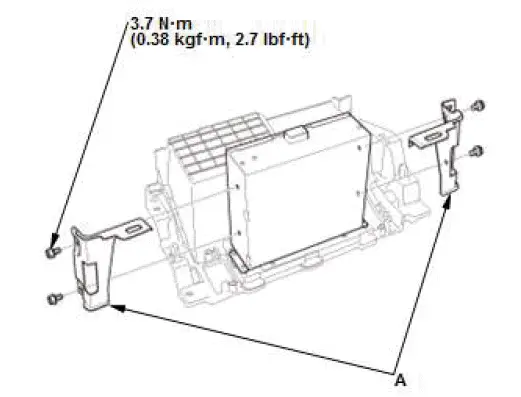

1. Remove the brackets (A).

8. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE: If the bolt threads of the steering hanger beam are stripped, replace the bolts with one-size larger bolts (available as a service part), which are specifically designed to tighten the instrument panel to the specified torque setting.

ECON Switch Removal and Installation

Removal/Installation

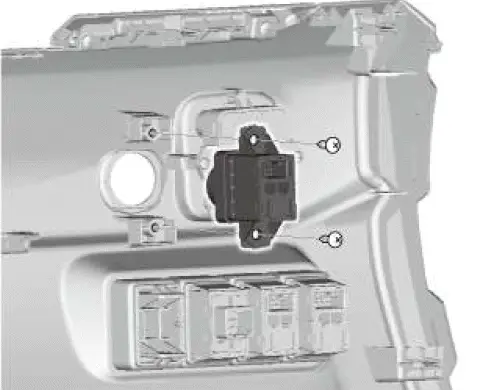

1. Driver's Dashboard Lower Cover - Remove

2. ECON Switch - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
