Honda Pilot: Front Door Checker Removal and Installation

Removal and Installation

1. Front Door Panel - Remove

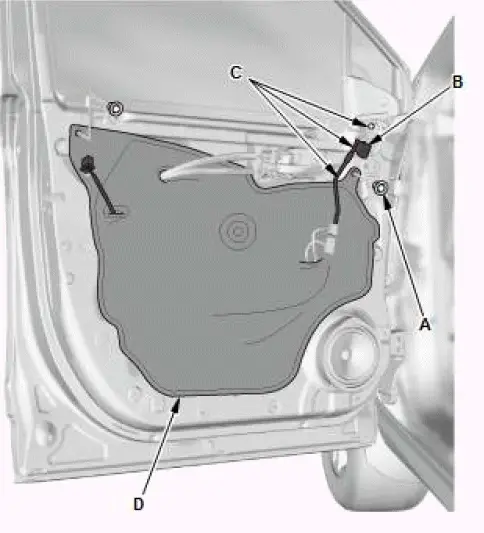

2. Front Door Plastic Cover - Remove

1. Remove the plug cap (A).
2. Disconnect the connector (B).
3. Remove the harness clips (C).
4. Remove the front door plastic cover (D) as needed.

   NOTE: If the plastic cover is damaged or torn, replace it with a new one.

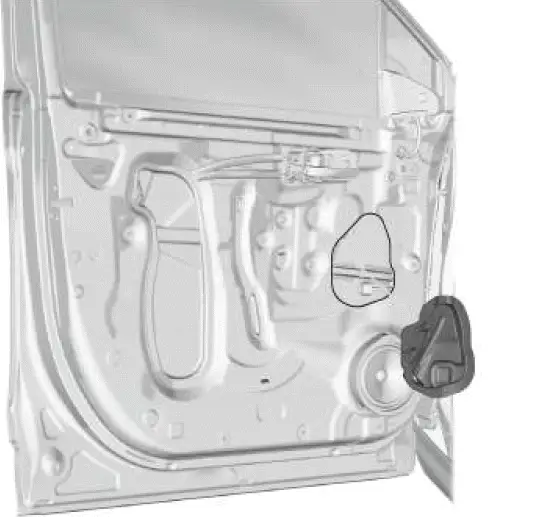

3. Front Door Panel Barrier A - Remove (For Some Models)

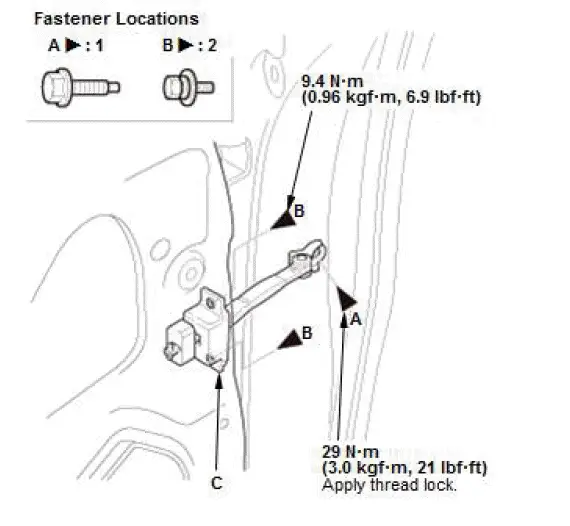

4. Front Door Checker - Remove

1. While supporting the front door, remove the bolts (A, B).
2. Remove the front door checker (C).

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

   NOTE: Apply medium strength liquid thread lock to the door checker mounting bolt before installation.
