Honda Pilot: Front Door Gap Seal Removal and Installation

Removal/Installation

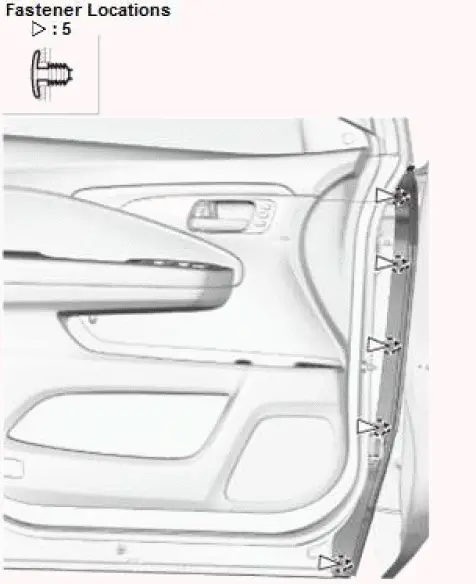

1. Front Door Gap Seal - Remove

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Front Door Glass Outer Weatherstrip Removal and Installation

Removal and Installation

1. Front Door Panel - Remove

2. Power Mirror - Remove

3. Front Door Plastic Cover - Remove (as needed)

4. Front Door Panel Barrier A/B - Remove (For Some Models)

5. Front Door Glass Outer Weatherstrip - Remove

1. Release the hooks (A, B) with a flat-tip screwdriver from inside of the door.
2. Remove the front door glass outer weatherstrip (C).

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
