Honda Pilot: Front Door Regulator Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Front Door Regulator Removal and Installation
Removal/Installation
1. Front Door Glass - Remove

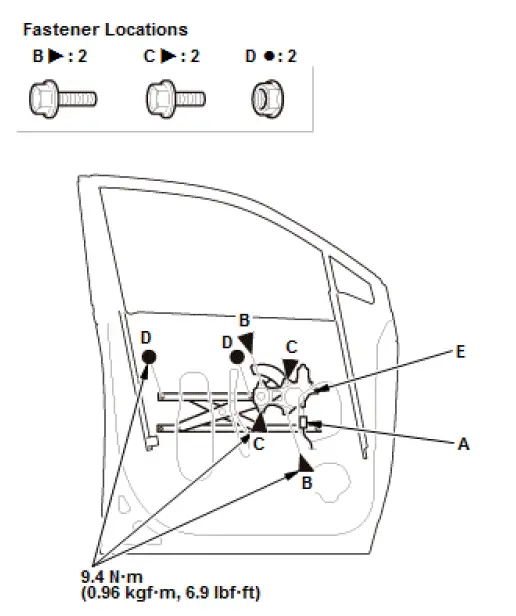

2. Front Door Regulator - Remove
- Disconnect the connector (A).
- Remove the bolts (B) and loosen the bolts (C).
- Remove the nuts (D), and then remove the front door regulator (E).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.

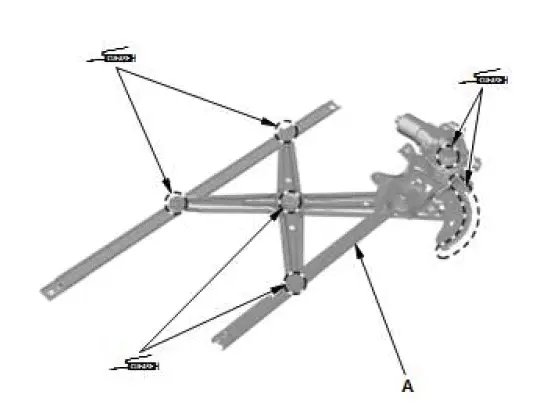

NOTE: Apply multipurpose grease to all sliding surfaces of the front door regulator (A) where shown.
