Honda Pilot: Front Door Weatherstrip Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Front Door Weatherstrip Removal and Installation
1. Power Mirror - Remove

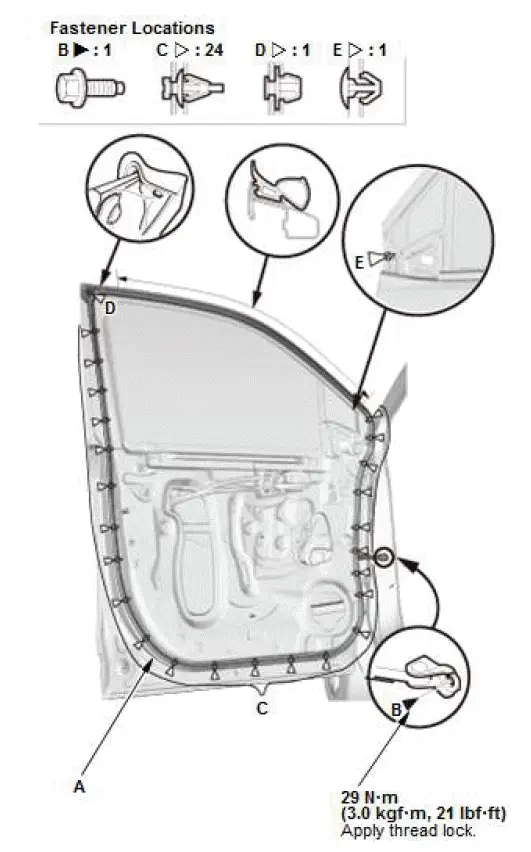

2. Front Door Weatherstrip - Remove
- Remove the door checker mounting bolt at the A-pillar.
- Remove the front door weatherstrip (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE: Apply medium strength liquid thread lock to the door checker mounting bolt before installation.
4. Water Leaks - Check
