Honda Pilot: Front Seat-Back Cover Removal and Installation

Removal and Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove

2. Front Seat Armrest - Remove

3. Front Seat-Back Cover/Pad - Remove

Driver's seat

Passenger's seat

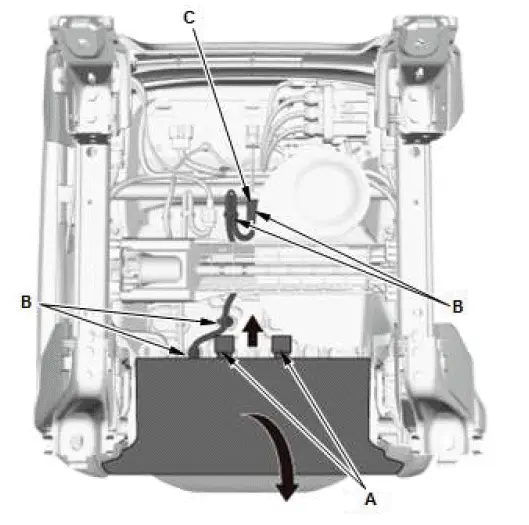

1. Release the hooks (A).
2. Remove the harness clips (B). (with side airbag)
3. Disconnect the connector (C). (passenger's seat)

4. Release the hook strips (A), and unzip the seat-back cover (B).

5. Release the hook strips (A), and then remove the clips.

6. Disconnect the connector (A). (with seat heater)
7. Remove the harness clip (B). (with side airbag)
8. Remove the nuts. (with side airbag)
9. Pull out the harness (C), out through the seat-cushion cover ring (D). (with side airbag)

10. Remove the seat back blower lower duct (A) from the seat back blower upper duct (B). (with ventilated seat)

11. Remove the head restraint guides (A).

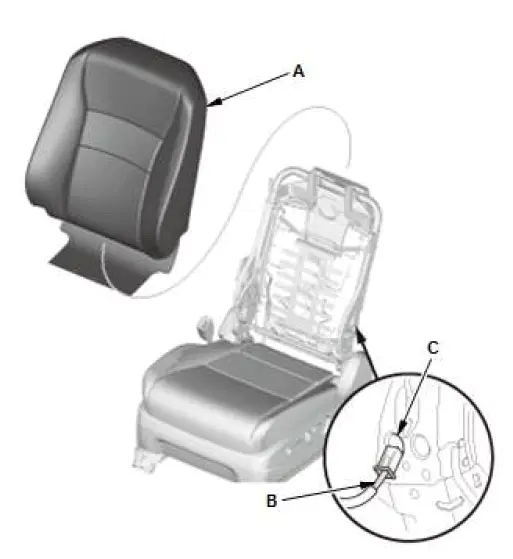

12. Remove the seat-back cover/pad (A).

NOTE: Pull out the harness (B), out through the seat frame hole (C).

13. Remove the nuts (A), and then remove the side airbag (B).

4. Front Seat-Back Cover - Remove

With ventilated seat

Without ventilated seat

1. Remove the upholstery rings (A) and fasteners (B), and then remove the seat-back cover (C).

5. All Removed Parts - Install
