Honda Pilot: Front Stabilizer Bar Removal and Installation

Removal

1. Vehicle - Lift

2. Front Wheels - Remove

3. Engine Undercover - Removal

4. Stabilizer Link - Disconnect

1. Disconnect both sides of the stabilizer link from the stabilizer bar.

5. Front Suspension Stroke Sensor - Disconnect (With Auto Leveling System)

6. Lower Arm - Remove (Driver's Side)

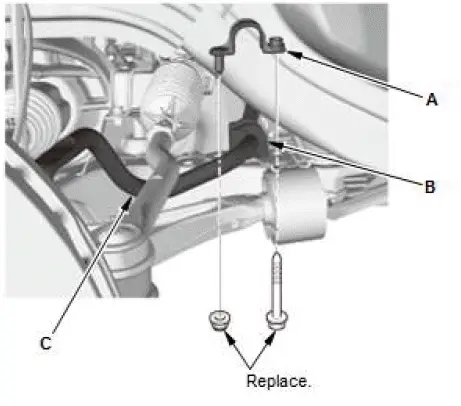

7. Stabilizer Bar - Remove

1. Remove the bushing holders (A).
2. Remove the bushings (B).
3. Move the stabilizer bar (C) toward the driver's side, and remove the stabilizer bar.

   NOTE: Be careful not to damage the steering gearbox.

Installation

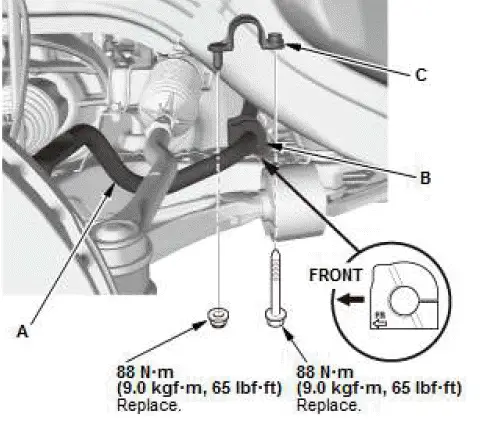

1. Stabilizer Bar - Install

1. Install the stabilizer bar (A).

   NOTE: Be careful not to damage the steering gearbox.

2. Install the bushings (B).

   Note: Direction of installation for the bushing.

3. Install the bushing holders (C).

2. Lower Arm - Install (Driver's Side)

3. Front Suspension Stroke Sensor - Connect (With Auto Leveling System)

4. Stabilizer Link - Connect

1. Connect both sides of the stabilizer link to the stabilizer bar.

5. Engine Undercover - Install

6. Front Wheels - Install

7. Headlight Initial Position - Learn (With Auto Leveling System)
