Honda Pilot: Front Seat Frame Removal and Installation

Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove

2. Front Seat-Back Cover - Remove

3. Front Seat Cushion Cover - Remove

4. Front Seat Belt Buckle - Remove

5. Front Seat Belt Outer Lap Pretensioner (Passenger's Side) - Remove

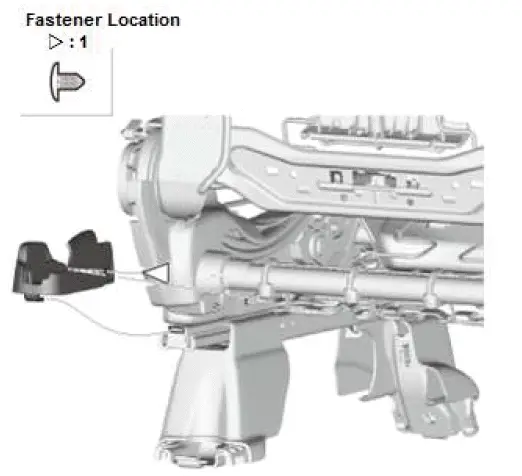

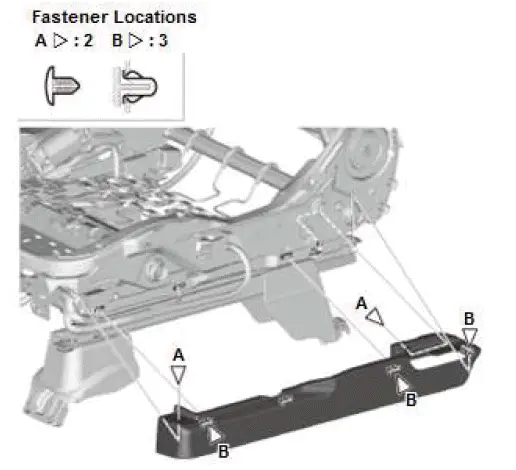

6. Upper Rail Outer Cover - Remove (Driver's seat)

Power seat

Manual seat

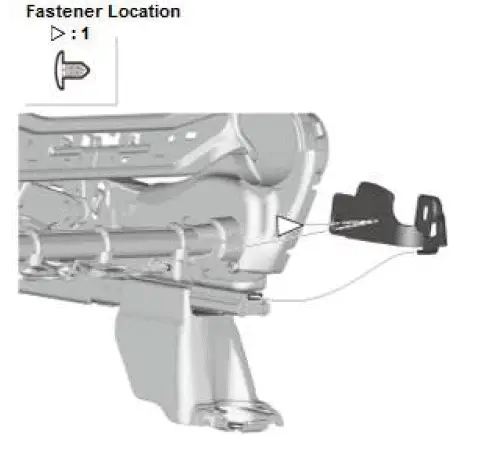

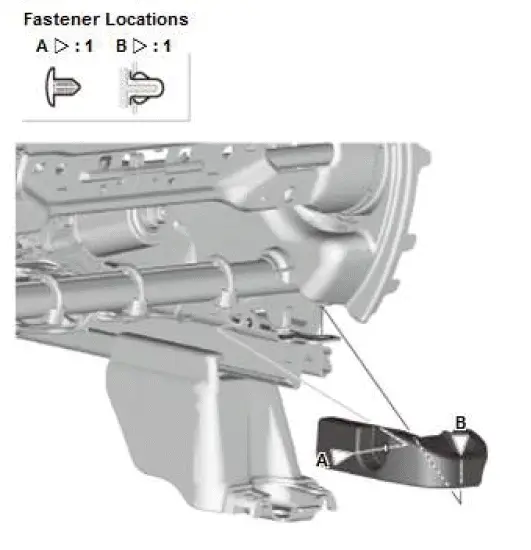

7. Upper Rail Inner Cover - Remove (Driver's seat)

Power seat

Manual seat

8. Front Seat Frame - Remove

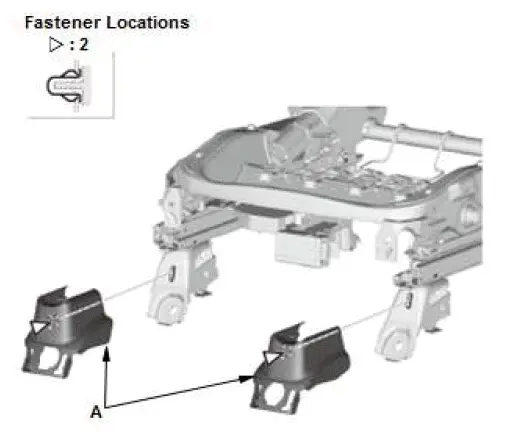

1. Remove the front seat front foot covers (A).

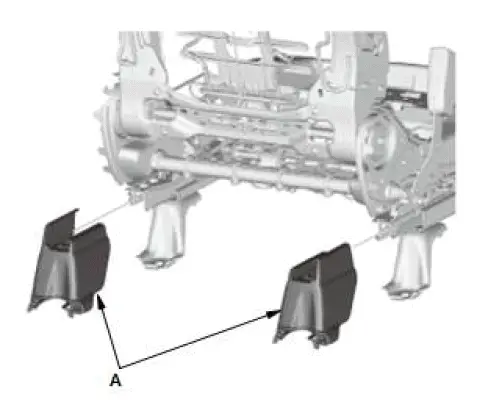

2. Remove the front seat rear foot covers (A).

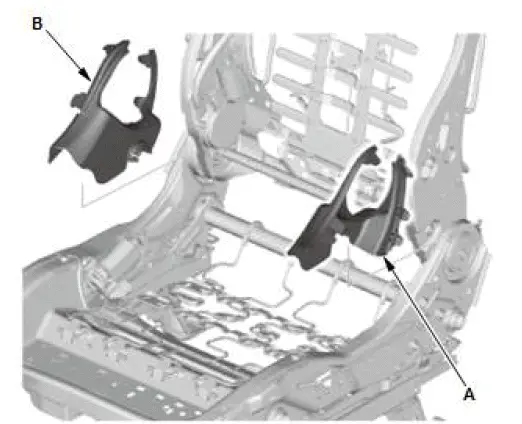

3. Remove the recline inner cover (A) and the center inner cover (B).

9. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE: Clear the driving position memory after doing any of the following actions.

• Replace the new front seat frame.
• Substitute a known-good front seat frame.
