Honda Pilot: Heated Steering Wheel Switch Test

Test

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Steering Wheel Trim - Remove

2. Heated Steering Wheel Switch - Test

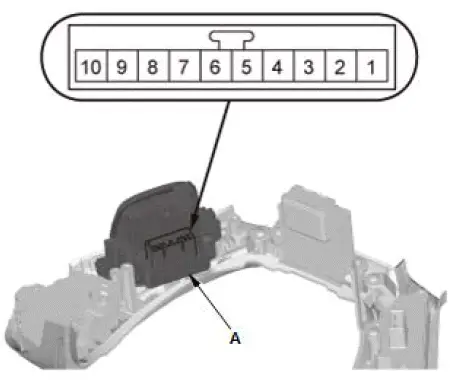

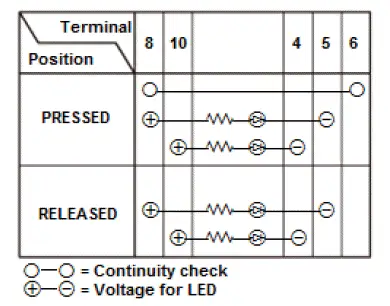

1. Check for continuity between the terminals in each switch position according to the table.

NOTE:

• When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
• Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the result is not as specified, replace the heated steering wheel switch (A).

3. All Remove Parts - Install

1. Install the parts in the reverse order of removal.
