Honda Pilot: Heated Steering Wheel Temperature Sensor Test

Test

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Driver's Airbag - Remove

2. Steering Wheel Temperature Sensor - Test

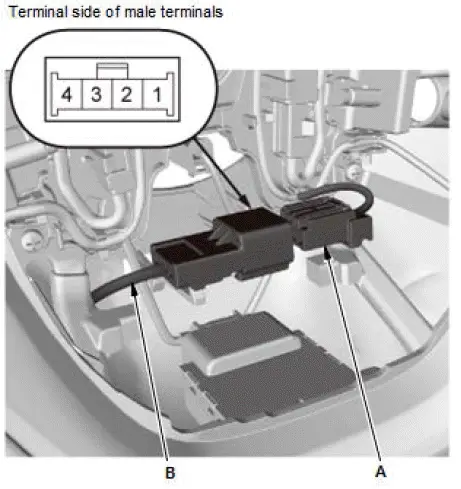

1. Disconnect the connector (A).

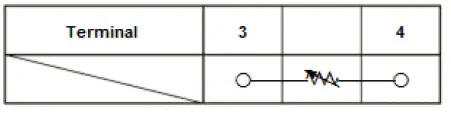

2. Measure the resistance between the terminals according to the table.

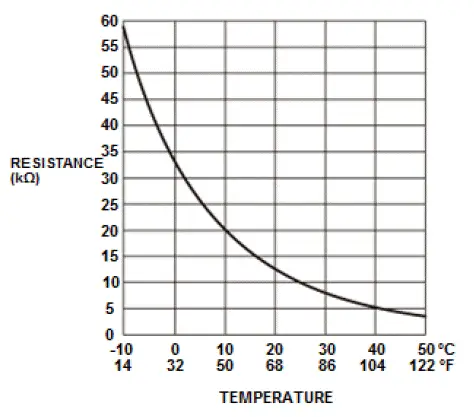

3. Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications.
4. If the resistance is not as specified, the steering wheel temperature sensor (B) is faulty; replace the steering wheel assembly.

3. All Remove Parts - Install

1. Install the parts in the reverse order of removal.
