Honda Pilot: Heated Windshield Wiper Area Switch Test

Test

1. Driver's Dashboard Lower Cover - Remove

2. Heated Windshield Wiper Area Switch - Test

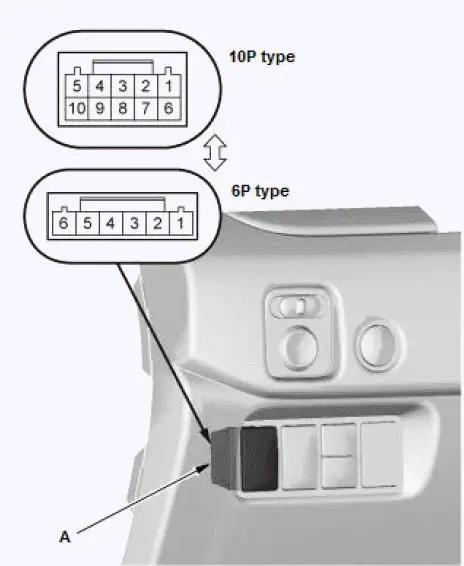

NOTE: The mounting position of the heated windshield wiper area switch (A) is different depending on the model.

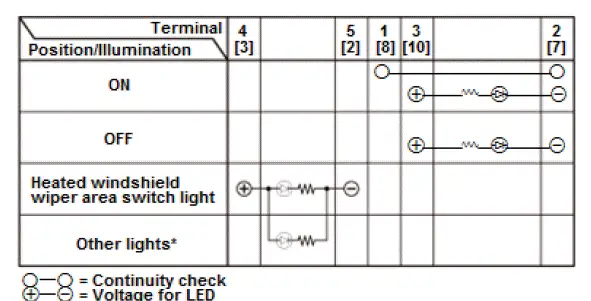

1. Check the heated windshield wiper area switch according to the table.

NOTE:

• When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
• Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

[]: 10P type
 *: 10P type

2. If the result is not as specified, replace the heated windshield wiper area switch.

3. All Parts Removed - Install

1. Install the parts in the reverse order of removal.
