Honda Pilot: Heated Windshield Wiper Area Test
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Parts Test Info / Heated Windshield Wiper Area Test
Test
1. Cowl Cover - Remove
2. Heated Windshield Wiper Area - Test

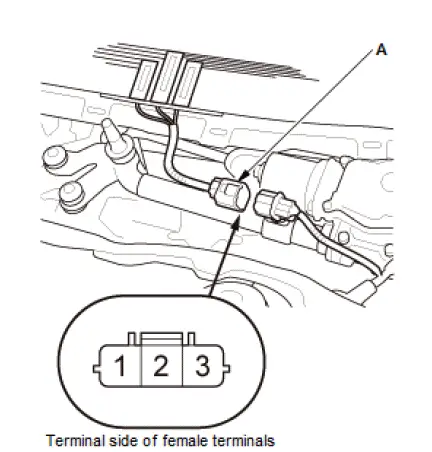

- Disconnect the connector (A).
- Measure the resistance between the terminals in each terminals according to the table.
- If the result is not as specified, the heated windshield wiper area is faulty; replace the windshield.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Honda Pilot 2016-2022 (YF5/YF6) Service Manual
