Honda Pilot: Ignition Coil and Spark Plug Removal and Installation

Removal/Installation

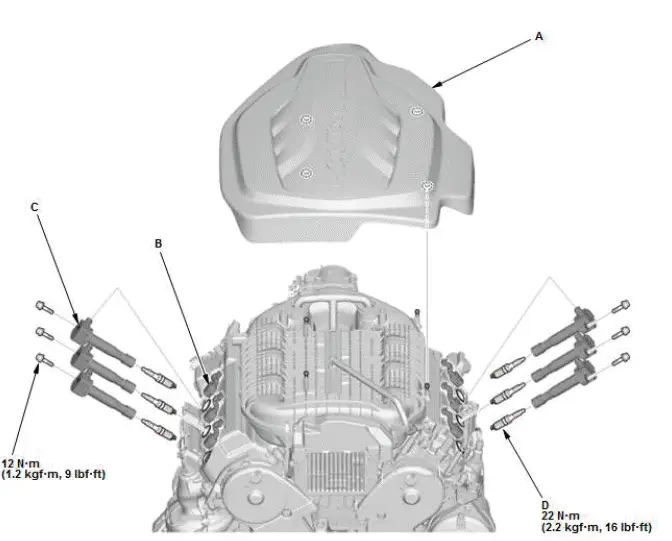

1. Engine Cover, Ignition Coil, and Spark Plug - Remove

1. Remove the engine cover (A).

2. Disconnect the connectors (B).
3. Remove the ignition coils (C).
4. Remove the spark plugs (D).

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE: When the spark plugs install, apply a small amount of anti-seize compound to the spark plug threads, and screw the spark plugs into the cylinder head, finger-tight, then tighten the spark plugs to the specified torque.

3. Maintenance Minder - Reset (With Maintenance Minder System)

1. If the Maintenance Minder required to replace the spark plugs, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder").
