Honda Pilot: Interior Trim Removal and Installation - Rear Side Area

Removal/Installation

1. Cargo Floor Board Support - Remove

2. Rear Door Sill Upper Trim - Remove

3. Third Row Seat - Remove

4. Rear Side Trim Panel - Remove

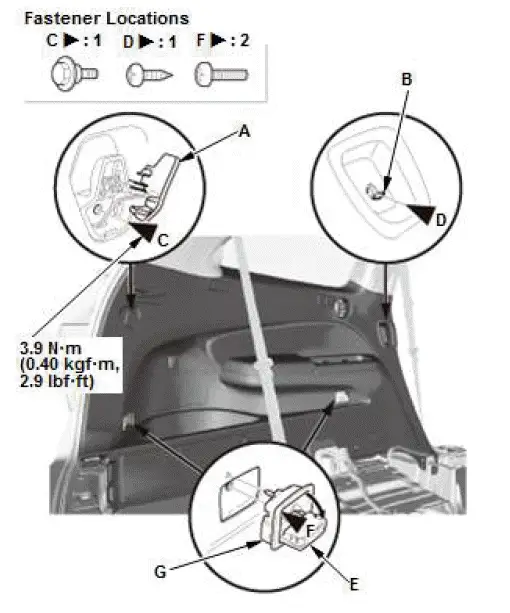

1. Open the caps (A, B), and then remove the bolt (C) and screw (D).
2. Pry out the covers (E), and remove the screws (F), and then remove the tie down hooks (G).

3. Pull out the rear door opening seal (A) and tailgate weatherstrip (B) as needed.
4. Remove the rear side trim panel (C).
5. Disconnect the connector (D). (left side only)

5. Rear Side Trim Panel Armrest/Belt Holder - Remove

1. If necessary, remove the rear side trim panel armrest (A) and belt holder (B).

6. Third Row Seat Outlet - Remove

1. If necessary, remove the third row seat outlet (A).

7. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
