Honda Pilot: Interior Trim Removal and Installation - Tailgate Areas
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Interior Trim Removal and Installation - Tailgate Areas
Removal/Installation

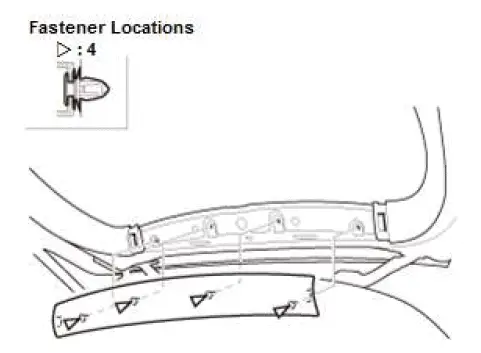

1. Tailgate Upper Trim Panel - Remove

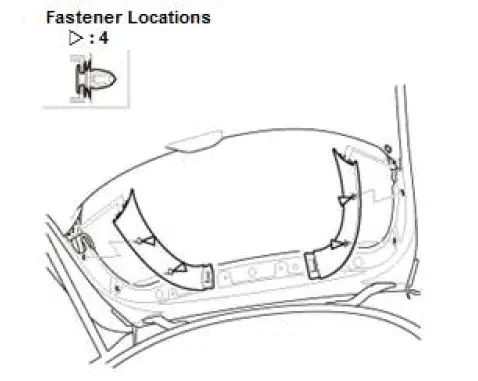

2. Tailgate Side Trim Panel - Remove
3. Tailgate Lower Trim Panel - Remove

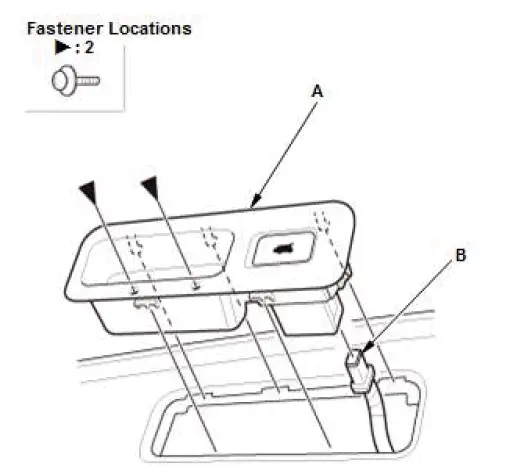

- Remove the pull pocket (A).
- Disconnect the connector (B).

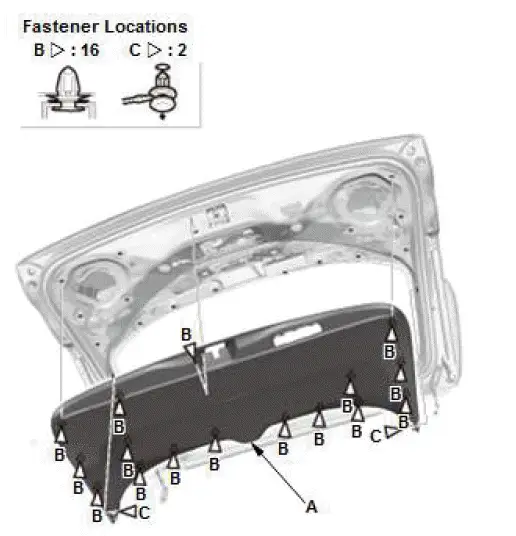

- Remove the tailgate lower trim panel (A).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
