Honda Pilot: LKAS Switch Removal, Installation, and Test
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / LKAS Switch Removal, Installation, and Test
Removal/Installation
SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
1. ACC Combination Switch - Remove
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Test
1. LKAS Switch - Test

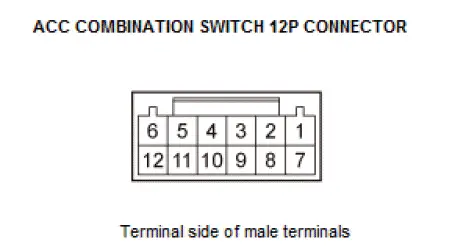

- Measure the resistance between ACC combination switch 12P connector terminals No. 3 and No. 4 according to the table
If there is no resistance in one or more positions, replace the ACC combination switch.
| Position | Resistance |
| OFF | About 2.2 kΩ |
| LKAS (PRESSED) | About 60 Ω |
