Honda Pilot: MAF Sensor/IAT Sensor Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / MAF Sensor/IAT Sensor Removal and Installation
Removal/Installation

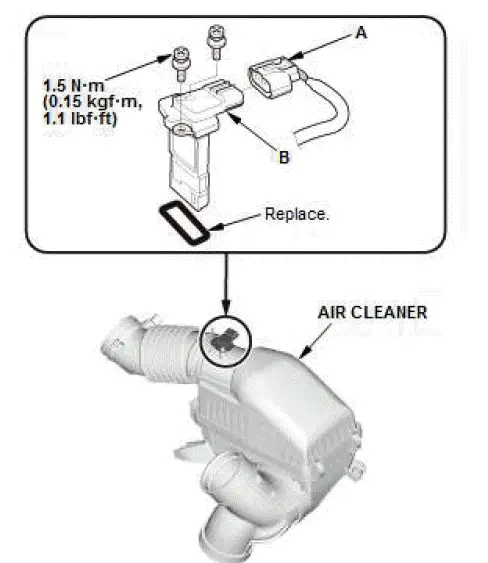

1. MAF Sensor/IAT Sensor - Remove
- Disconnect the connector (A).
- Remove the MAF sensor/IAT sensor (B).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal with a new O-ring.
