Honda Pilot: Moonroof Drain Channel Removal and Installation

Removal/Installation

1. Moonroof Glass - Remove

2. Drain Channel - Remove

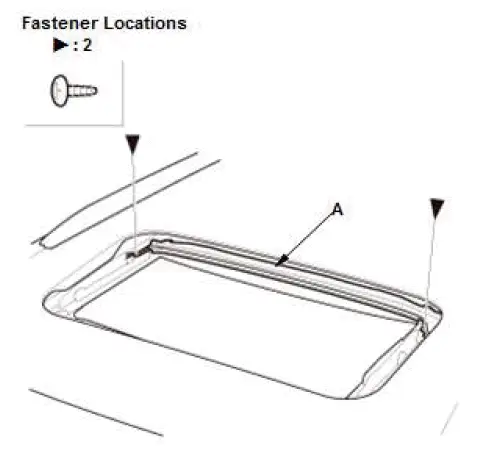

1. Remove the screws securing the drain channel (A).

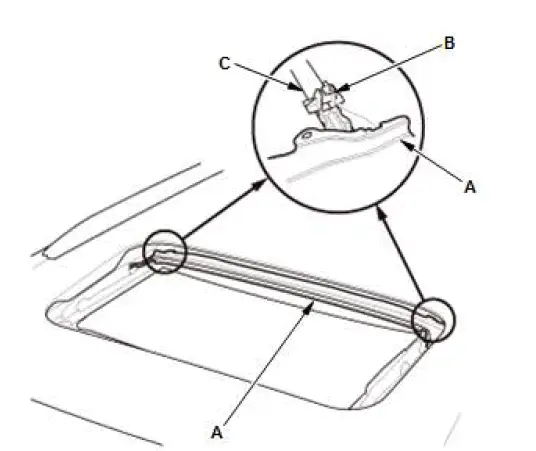

2. Release the drain channel (A) from both hooks (B) of the drain channel slider (C).

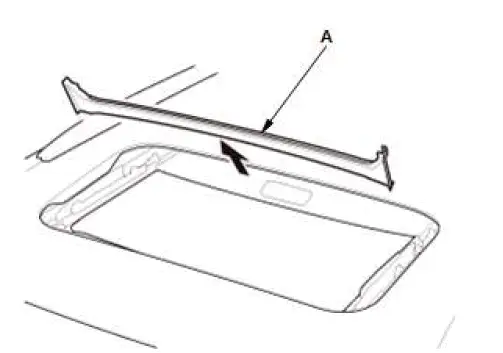

3. Remove the drain channel (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

4. Moonroof Glass Position - Adjust
