Honda Pilot: Power Tailgate Inside Switch Test

1. Power Tailgate Inside Switch Panel - Remove

2. Power Tailgate Inside Switch - Test

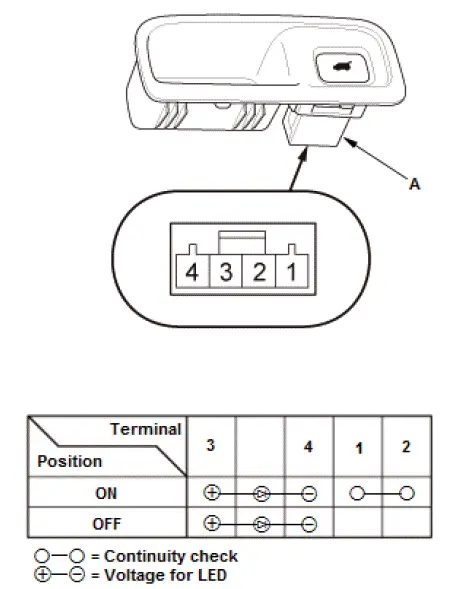

1. Check for continuity between the terminals in each switch position according to the table.

   NOTE:

   • When an LED is located between terminals, check if the LED lights up by connecting power and ground to the LED.
   • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
2. If the continuity is not as specified, replace the power tailgate inside switch (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
