Honda Pilot: Power Tailgate Latch/Ratchet Switch Test
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Parts Test Info / Power Tailgate Latch/Ratchet Switch Test
Test
1. Tailgate Lower Trim Panel - Remove
2. Power Tailgate Latch/Ratchet Switch - Test

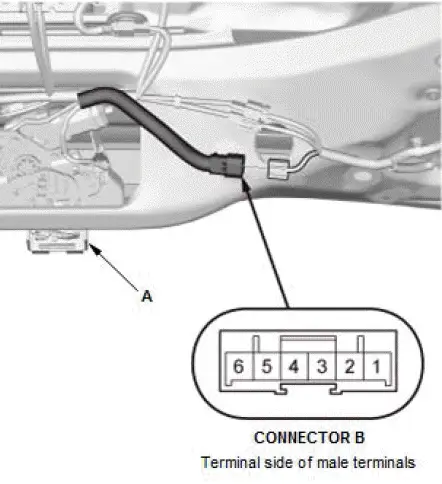

- Disconnect the connector B.

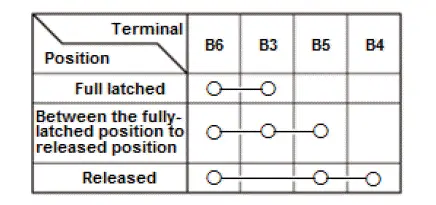

- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not specified, the tailgate latch switch is faulty; replace the tailgate latch assembly (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
