Honda Pilot: Rear Brake Pad Inspection

Inspection

CAUTION

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

• Avoid breathing dust particles.
• Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

1. Vehicle - Lift

2. Rear Wheels - Remove

3. Rear Brake Pad - Inspect

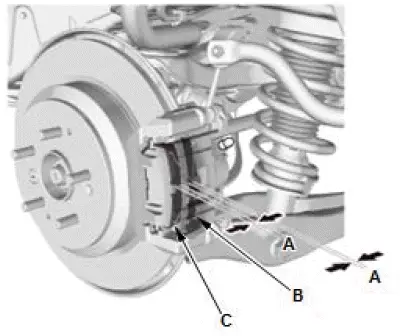

1. Check the thickness (A) of the inner pad (B) and the outer pad (C). Do not include the thickness of the backing plate.

Brake pad thickness:

  Standard: 10.0 mm (0.394 in)

  Service limit: 1.6 mm (0.063 in)

2. If any part of the brake pad thickness is less than the service limit, replace the brake pads as a set.

4. Rear Wheels -Install
