Honda Pilot: Rear Bumper Skid Trim Removal and Installation

Removal/Installation

1. Rear Bumper - Remove

2. Subharness - Remove

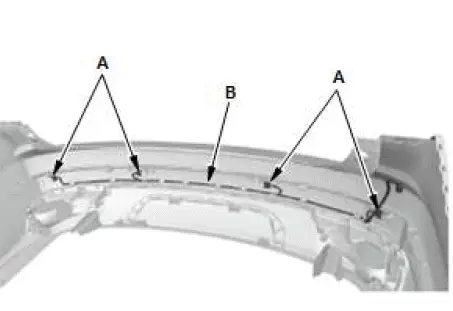

1. Disconnect the connectors (A). (for some models)
2. Remove the subharness (B).

3. Back-up light - Remove

4. Rear Bumper Skid Trim - Remove

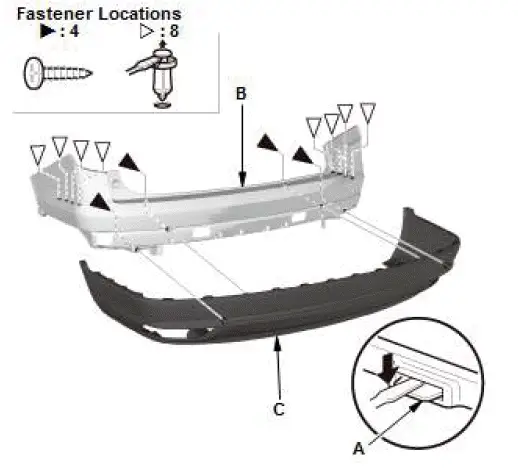

Without Rear Bumper Trim

1. Remove the screws and the clips.
2. Release the hooks (A) from the back of the rear bumper (B), and then remove the rear bumper skid trim (C).

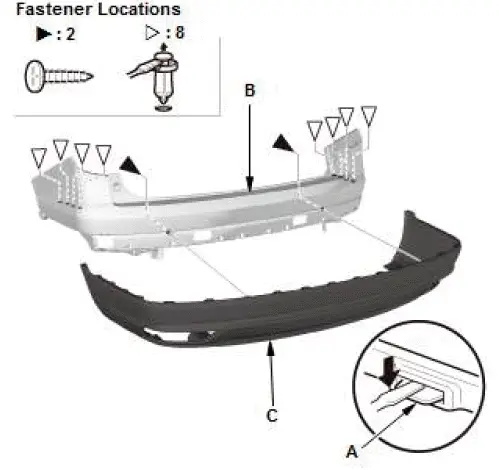

With Rear Bumper Trim

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
