Honda Pilot: Rear Door Glass Outer Weatherstrip Removal and Installation

Removal/Installation

1. Rear Door Panel - Remove

2. Rear Door Plastic Cover - Remove (as needed)

3. Rear Door Panel Barrier A/B - Remove (For Some Models)

4. Rear Door Glass Outer Weatherstrip - Remove

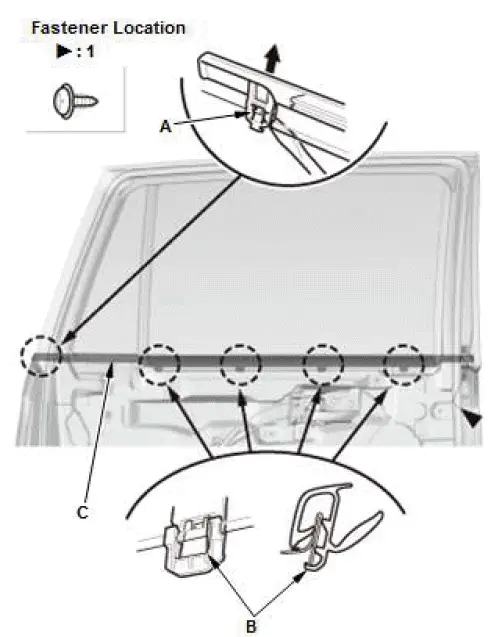

1. Release the hooks (A, B) with a flat-tip screwdriver from inside of the door.
2. Remove the front door glass outer weatherstrip (C).

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
