Honda Pilot: Rearview Camera Removal and Installation

Removal/Installation

NOTE: The rearview camera is combined with the tailgate outer handle/lock switch.

1. Tailgate Lower Trim Panel - Remove

2. Tailgate Outer Handle/Lock Switch - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Rearview Mirror Removal and Installation

Removal/Installation

1. Camera Cover - Remove (For Some Models)

2. Harness Cover - Remove (For Some Models)

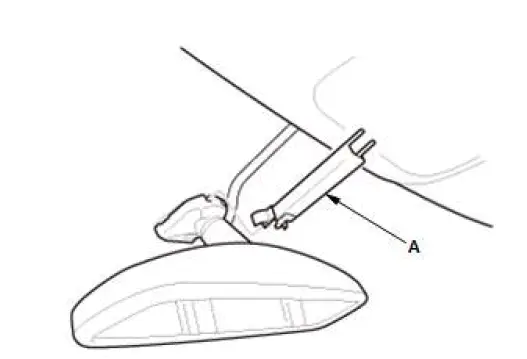

1. Remove the harness cover (A).

3. Rearview Mirror - Remove

Except Auto High-Beam

Auto High-Beam

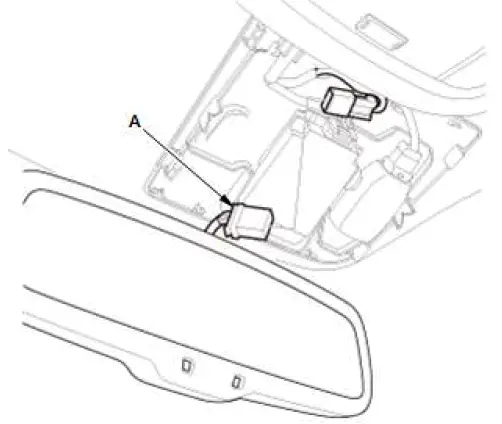

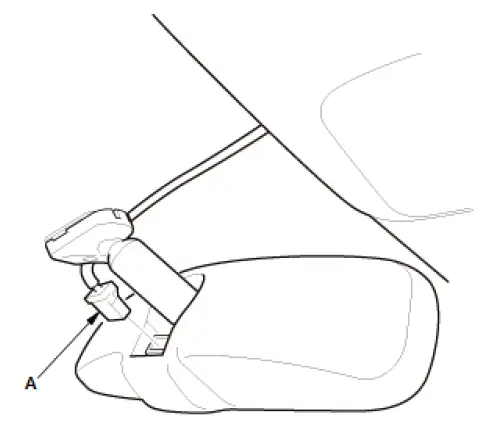

1. Disconnect the connector (A). (for some models)

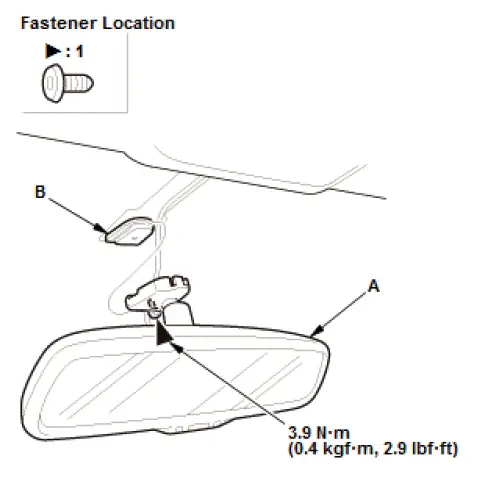

2. Remove the screw with a TORX T20 bit.
3. Slide the rearview mirror (A) rearward and off the mount (B).

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Receiver/Dryer Desiccant Removal and Installation

Removal/Installation

Torque: N-m (kgf-m, lbf-ft)

Replace

1. A/C Condenser - Remove

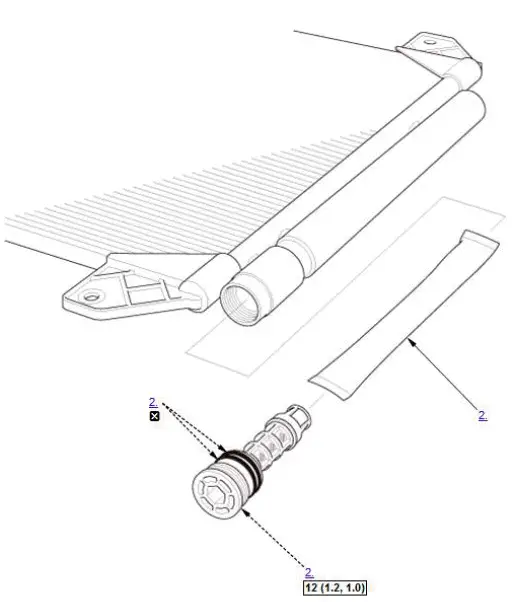

2. Desiccant - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
