Honda Pilot: Stereo Amplifier Removal and Installation

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Stereo Amplifier Removal and Installation

Removal/Installation

1. Glove Box - Remove

2. Stereo Amplifier - Remove

Honda Pilot. Remove, Install, Replace, Check info

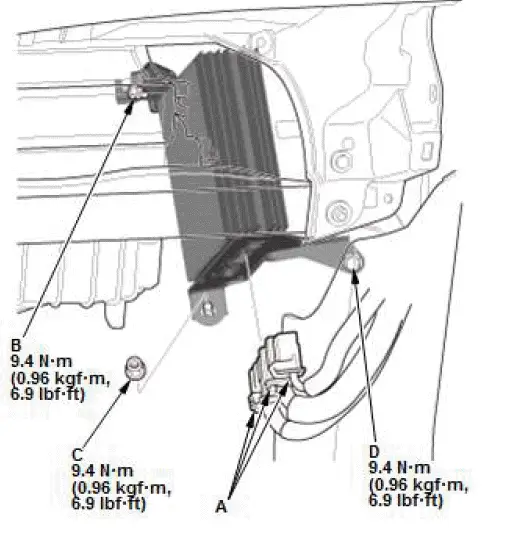

  1. Disconnect the connectors (A).
  2. Loosen the nut (B).
  3. Remove the nut (C).
  4. Remove the bolt (D).

Honda Pilot. Remove, Install, Replace, Check info

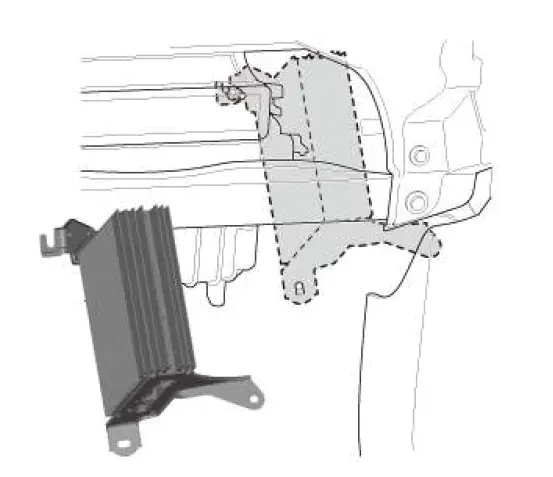

  1. Remove the stereo amplifier.
