Honda Pilot: Sunlight Sensor Test

Test

NOTE: Before testing the sensor, check for climate control DTCs.

1. Sunlight Sensor - Test

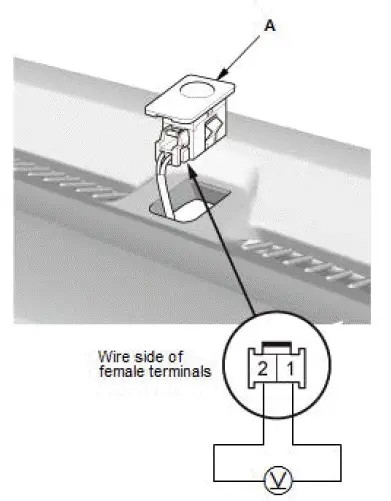

1. Pull out the sunlight sensor (A).
2. Turn the vehicle to the ON mode.
3. Measure the voltage between (＋) probe on terminal No. 2 and (－) probe on terminal No. 1 with the connector connected.

   NOTE: The voltage readings will not change under the light of a flashlight or a fluorescent lamp.

   Voltage should be:

   • 3.56 V with no sunlight or the sensor covered up
   • Less than 3.56 V with sunlight on the sensor (depending on sunlight intensity)
4. If the voltage is not as specified, replace the sunlight sensor.

Sunshade Control Unit Input Test

NOTE:

• Before testing, check for DTCs. If any DTCs are indicated, troubleshoot those DTCs first.
• If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A.
• If the sunshade works OK manually, but will not work in AUTO, or reverses frequently (obstacle detection), reset the sunshade before proceeding with the input test.
• Before testing, make sure the No. A2-4 (20 A) fuse in the under-hood fuse/relay box is OK.
• Before testing, make sure the No. C29 (7.5 A) fuse in the under-dash fuse/relay box is OK.

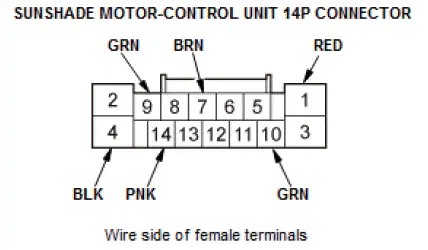

1. Disconnect the sunshade motor-control unit 10P connector.

2. Inspect the connector and socket terminals to be sure they are all making good contact:

• If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
• If the terminals are OK, go to step 3.

3. With the connector still disconnected, do the following input tests:

• If any test indicates a problem, find and correct the cause, then recheck the system.
• If all the input tests prove OK, do the sunshade control unit resetting procedure.

NOTE: After replacing the sunshade motor-control unit, do the sunshade control unit resetting procedure.
