Honda Pilot: Sunshade Switch Test
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Parts Test Info / Sunshade Switch Test
Test
1. Roof Console Module - Remove
2. Sunshade Switch - Test

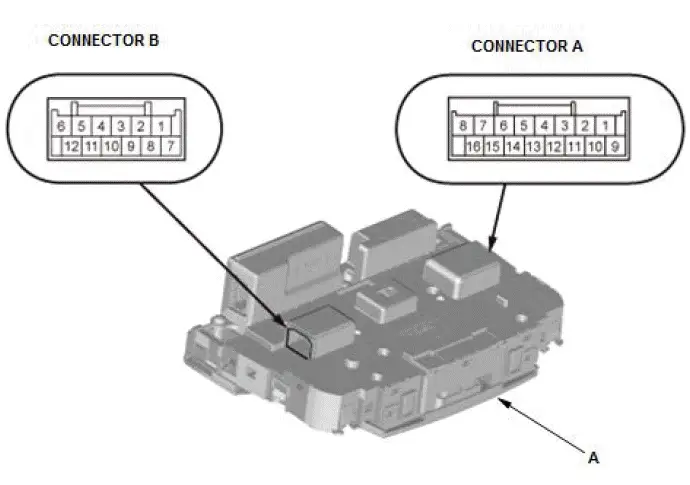

NOTE: The sunshade switch is built into the roof console module (A).

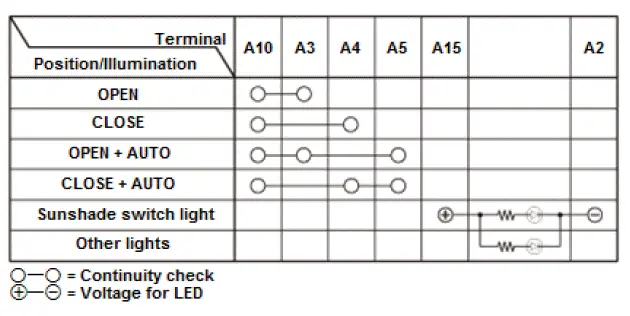

- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, replace the roof console module.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
