Honda Pilot: Tailgate Latch Removal and Installation

Removal and Installation

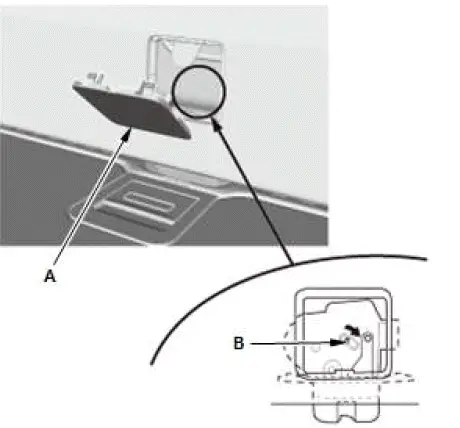

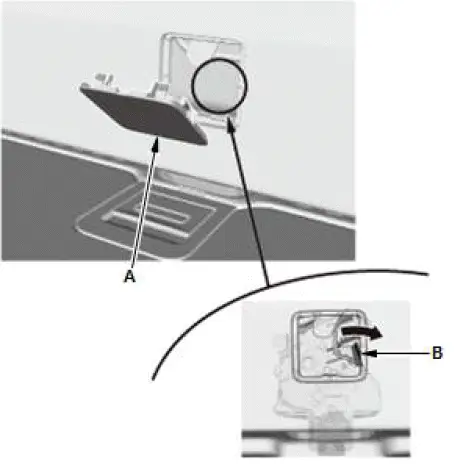

NOTE: If the tailgate latch cannot be unlocked by using the tailgate outer handle switch or the keyless entry transmitter or by unlocking the driver's door lock, remove the maintenance lid (A) from the tailgate lower trim panel, and then turn the emergency lever (B) clockwise as shown.

With Power Tailgate

Without Power Tailgate

1. Tailgate Lower Trim Panel - Remove

2. Tailgate Latch - Remove

With Power Tailgate

Without Power Tailgate

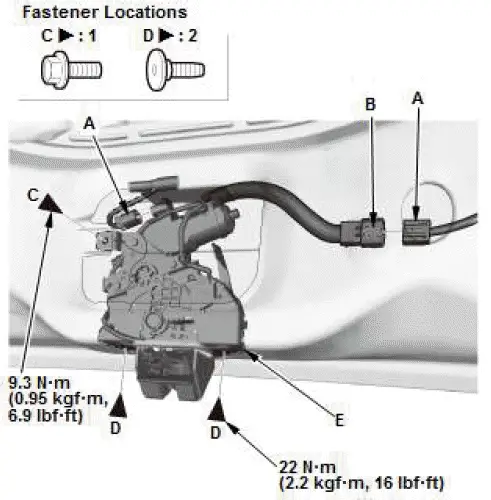

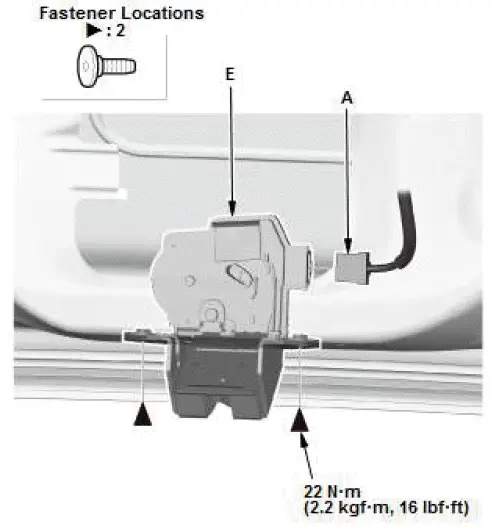

1. Disconnect the connectors (A).
2. Remove the harness clip (B).
3. Remove the bolts (C, D), and then remove the tailgate latch (E).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
